Racing Coilovers Suspension Kits Compatible for Toyota Camry (ACV30/MCV30) 2002-2006

SKU

3002911319

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1. Adjustable Damping & Height

Unique 24 levels of damping adjustments ensure the stability of damping performance under various conditions.
Adjustable lower mount allows maximum suspension travel

2. High Quality Components

Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness
Pillow ball top mount is designed for improving Steering feel and response

3.Hi-Tensile Performance Spring

Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved .

4. Twin-tube Construction Dust boot protects damper seal

Dust boot protects damper seal
Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance

Introduction

MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

Compatible for Toyota Camry (ACV30/MCV30) 2002-2006

Specification

Top mounts: Pillow ball top mounts
Damping: 24 levels rebound damping adjustable
Shock type: Twin tube
Adjustable height: Yes lowering 1'' to 3''
Adjustable camber plate: Yes
Spring preload: 7-10 mm
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Color: Golden

Feature

Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
Twin-Tube structure allows sufficient stroke within the shock absorber.
Camber plate top mounts help to eliminate the need for a separate camber kit.
Pillow ball top mount - It improves the steering feel and response.
Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
Separate height adjustment does not affect damper stroke.
Height can be adjusted with coilovers installed on the vehicle.
High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
Height Adjustment tools included.
Full rebuildable.

Package included

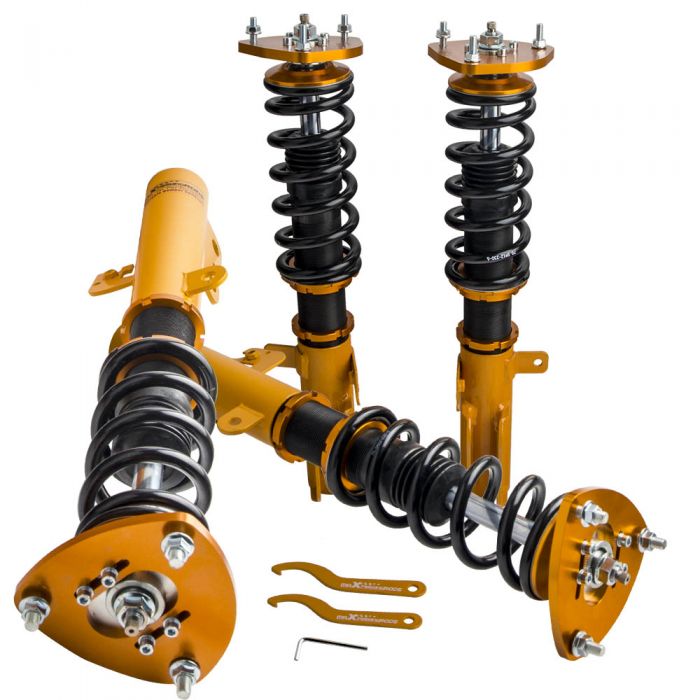

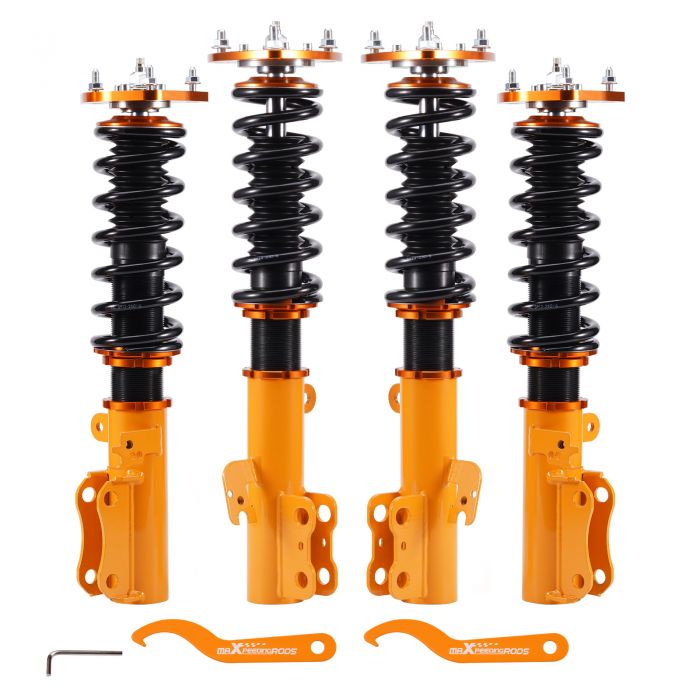

product included: complete coilovers 2 front and 2 rear as shown in the picture

Dimension

Size: 71*51*21 cm
Weight: 32.28 kg
