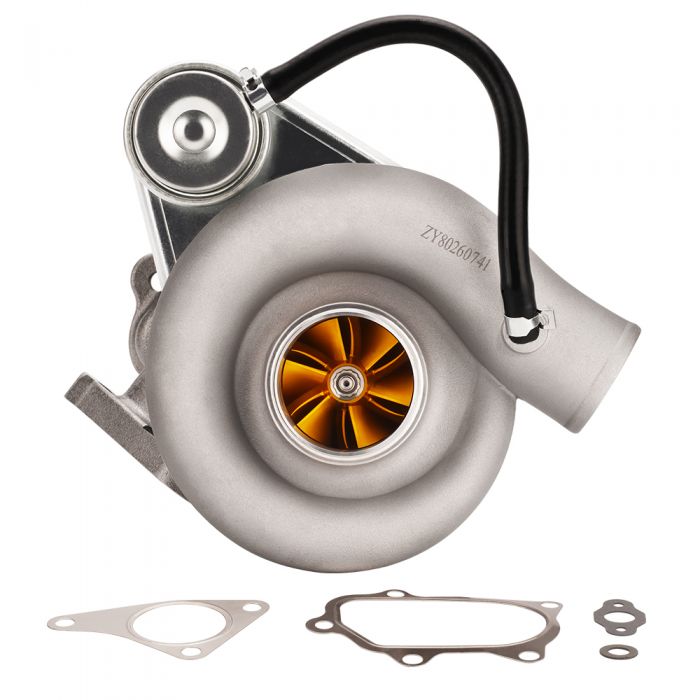

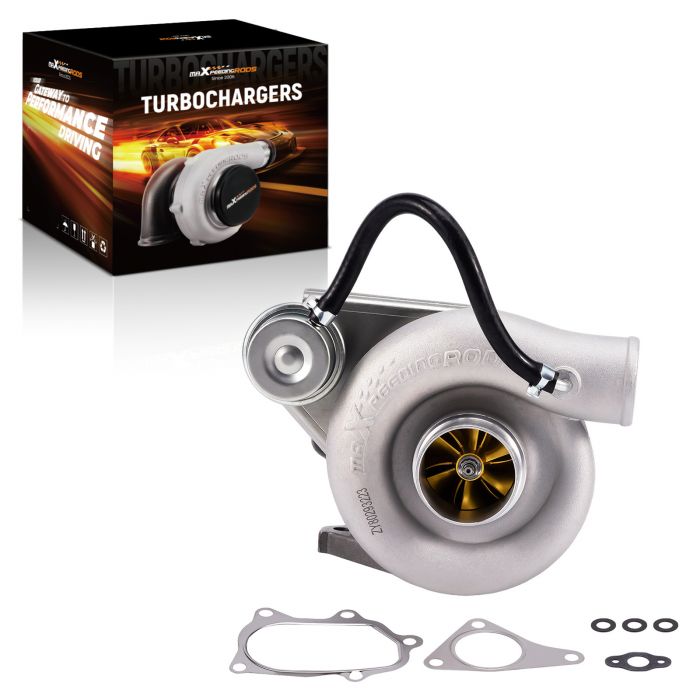

Billet Compressor Wheel Street Performance Turbocharger Compatible for Subaru Impreza STI TD05 20G EJ20 EJ25 2002-2006

SKU

3002050600

Skip to the beginning of the images gallery

Application

Compatible for Subaru IMPREZA STI EJ20 EJ25 engine 2002 - 2006
\
\ *Notice: All Wagon engines and automatic sedan engines came with a TD04,all manual sedans including STI versions had a TD05. If your old turbo is TD04 one, some modification is required to fit the new turbo. All WRX Wagon engines and automatic sedan engines came with a TD04.all manual WRX sedans including STI versions had a TD05 model. If your original turbo is TD04model,some modification(connections, bolts,fixed screws etc.) is required.

Specification

Exhaust Outlet Flange:5-Bolt Flange
\ Exhaust Intlet Flange:3-Bolts Flange
\ Turbine Side:
\ Turbine Trim: 76.4
\ Turbine Housing: 7cm²
\ Turbine Inducer Diameter:56mm
\ Turbine Exducer Diameter: 48.96mm
\ Compressor Side:
\ Compressor Trim: 59.8
\ Compressor Inducer Diameter: 52.6mm
\ Compressor Exducer Diameter:67.9mm
\ Compressor Housing Inlet OD: 57.8mm
\
\ Oil Feed: M10*1.5
\ Oil Drain: 2*M6*1.0
\ Water In/Out: M14*1.5
\ Turbine housing: 7cm²
\ Compressor housing inlet OD: 57.8mm,ID:53.62mm
\ Compressor housing outlet OD: 51.2mm,ID:41.2mm
\
\ Bearing: Wet Float/Journal Bearing
\ Cooling Type: Water + Oil cooled
\ Thrust Bearing:270 degree
\ Hosepower: Up to 420 HP
\ Turbo Type:Individual
\ Universal Fitment: No
\ Finish: Matte
\ Accessories: You will get exactly as shown as picture above
\ Condition: 100% Brand New
\ Package Size:30x 28x 24 cm
\ Package Weight: 7650g

Package included

1xTurbocharger
\ 2xFlange gaskets
\ 2xOil/Water port gaskets
\ 1xManual
\ 1xBrochure
\ 1xSticker

Feature

*Product Material
\ 1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
\ 2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃
\ 3. Compressor housing：ZL104 aluminum with lightweight
\ 4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response
\
\ *Product Performance
\ 1. OEM fitment turbo with upgraded material and performance
\ 2. Excellent high temperature resistance，high efficiency and durability
\ 3. Rich experience in turbo production and own factory
\ 4. High-Speed oil seal ring and Precision clearance
\
\ * Technology Advantage:
\ 1. 100% balancing Test by TURBOTECHNICS VSR3
\ 2. G3-min-Flow VNT Turbo testing
\ 3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original fitment before Purchasing
\ * Professional installation is highly recommended
\ * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
