Street Type Turbocharger Perfect for all 4 or 6 CYL, 1.5L- 2.5L engines

SKU

3002050569

Skip to the beginning of the images gallery

Application

Perfect for all 4 or 6 CYL, 1.5L- 2.5L engines
\ Maximum PSI 18（1.2Bar）
\ *Notice:Please confirm that there is enough space in your car to install this turbo before purchasing.

Specification

Exhaust Inlet Flange: T3 4 bolt Flange
\ Exhaust Outlet Flange: V-Band Flange (ID/OD: 2.5"/3.1")
\ Turbine Side:
\ Turbine Trim: 74.2
\ Turbine A/R: 0.63
\ Turbine Inducer: 64.8mm
\ Turbine Exducer: 55.8mm
\ Turbine exhaust outlet : 79mm
\ Turbine exhaust inlet: 44.7mm（length）/85.8mm（width）
\ Compressor Side:
\ Compressor Trim: 48.1
\ Compressor A/R: 0.5
\ Compressor Inducer: 52.7mm
\ Compressor Exducer: 76mm
\ Compressor outlet:78 mm
\ Compressor inlet:51.5 mm
\
\ Bearing: Journal Bearing
\ Cooling Type: Oil Cooled
\ Wastegate: Internal Wastegate
\ Thrust Bearings: 270 Degrees
\ Hosepower: Up to 420 HP
\ Turbo Type: Individual
\ Universal Fitment: Yes
\ Finish:Polished
\ Condition: 100% Brand New
\ Accessories: You will get exactly as shown as picture above
\ Package Size:30x 28x 24 cm
\ Package Weight: 9180g

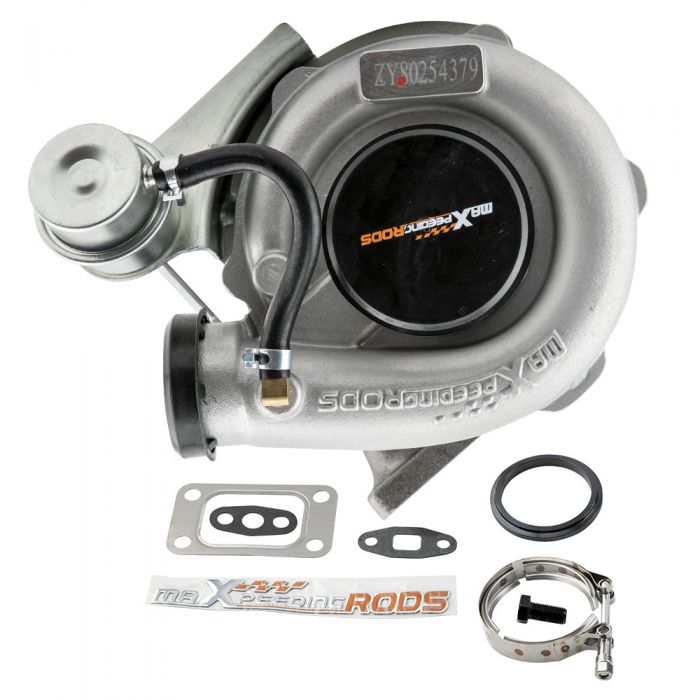

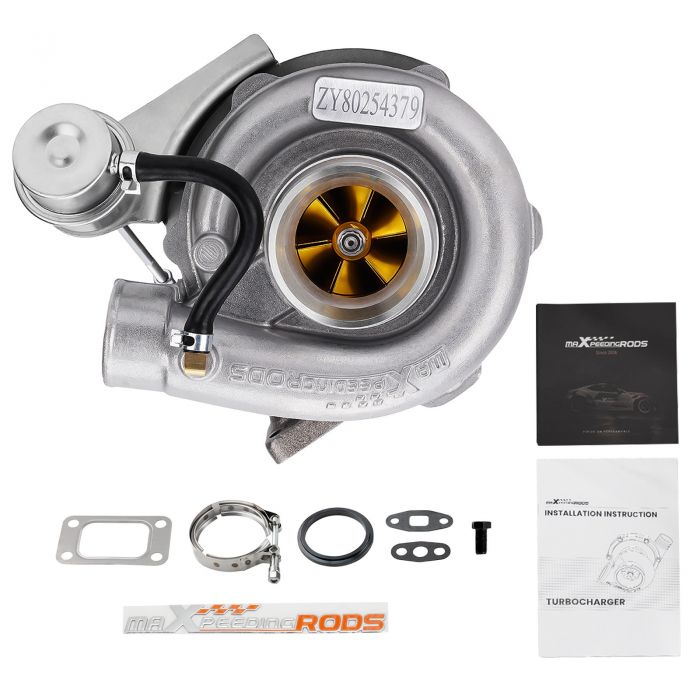

Package included

1xTurbocharger
\ 1xFlange gasket
\ 1xVband Clamp
\ 1x Adapter
\ 2xOil port gaskets
\ 1xBolt
\ 1xManual
\ 1xBrochure
\ 1xSticker

Feature

*Product Material
\ 1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
\ 2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃
\ 3. Compressor housing：ZL104 aluminum with lightweight
\ 4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response
\
\ *Product Performance
\ 1. Increase 20-40% power for your car
\ 2. Excellent high temperature resistance，high efficiency and durability
\ 3. Rich experience in turbo production and own factory
\ 4. High-Speed oil seal ring and Precision clearance
\
\ * Technology Advantage:
\ 1. 100% balancing Test by TURBOTECHNICS VSR3
\ 2. G3-min-Flow VNT Turbo testing
\ 3. Advanced Actuator Tester/Programmer

Note

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
\ * Make sure the oil drain line is lower than the turbo itself.
\ * Ensure exhaust outlet are well sealed by welding
\ * The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
\ * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
\ * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
