A/R 63 STAGE III T04E T3 T4 73 TURBINE Turbo W/Intercooler +Piping Pipe Kits

Application

This item fits: Universal Application.
Compatible for 1.5L to 2.5L any 4/6 cylinder engine up to 400+ HP
Maximum 18PSI

Note:Please confirm that your car's displacement is between 1.5-2.5L .

Please check the size before purchasing and make sure that your car has enough space to install this turbo.

Specification

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern

Cooling Type: Oil Cooled

Wastegate: External Wastegate

Compressor

Trim: 48.1

A/R: 0.5

Inducer: 52.7

Exducer: 76

Turbine:

Trim: 74.2

A/R: 0.63

Inducer: 64.8

Exducer: 55.8

Turbine exhaust outlet :

Turbine exhaust inlet：44.5mm/81mm

Compressor outlet：45mm(inside diameter)、53mm(Outer diameter)

Compressor inlet：68 mm(inside diameter)、72mm(Outer diameter)

Intercooler Information

*Inlet / outlet size :  2.5"

*Core size :  21''x 7''x 2.25''/550x175x64mm

*Full size:  27.00" (L) X 7.00" (H) X 2.50"(W)

*Compress Air Flow Rate<350Cubic Feet/Min, Rated up to500 Max HP

*Pressure drop:  2~5psiat35psi, 0.2~0.5psiat15psi

*Material:  Aluminum alloy

*Core design:   Tube & Fin

*Applaction:  Universal

Intercooler Piping Pipe Kit Information

*Application：Universal fits all Turbo Projects

*Description：

Pipe Thickness: 1.8mm

Pipe length: 18''

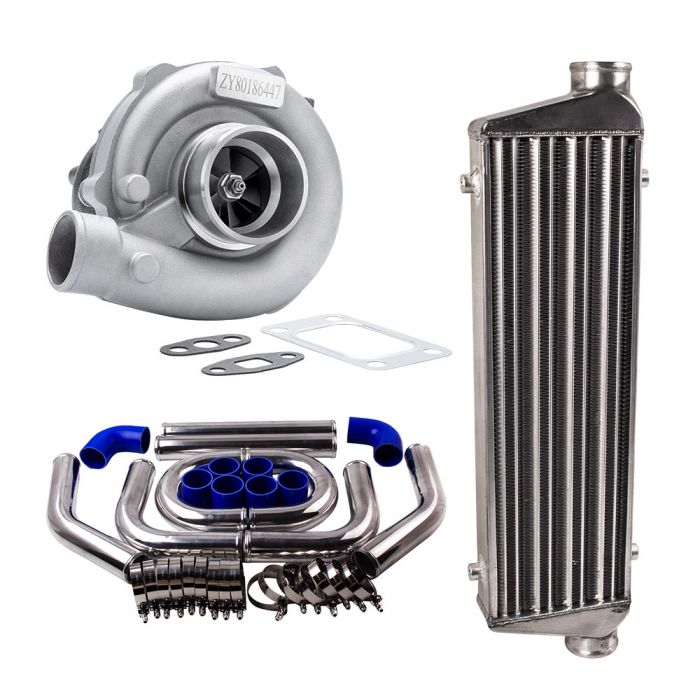

Package Included:You will get exactly as shown in the picture above

Condition: 100% Brand New

Notice

Professional installation is highly recommended (No Instruction)

For any needs please contact us

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
