T04E Turbocharger + 8PSI Internal Wastegate 38mm+30 PSI Boost Controller Kit

Application

for 2.5L and up engines\
for 3.2L-5.0L engines in twin turbo application, capable to 800HP

Note:Please confirm that your car's displacement is between 1.5-2.5L .

Please check the size before purchasing and make sure that your car has enough space to install this turbo.

Introduction

A turbocharger (also called turbo), is a turbine-driven forced induction device that increases an internal combustion engine’s efficiency and power output by forcing extra air into the combustion chamber. The key difference between a turbocharger and a conventional supercharger is precisely that a turbocharger is powered by a turbine driven by the engine's exhaust gas. A turbo consists of a compressor, a cartridge, a turbine and an exhaust valve. Maxpeedingrods provides universal turbochargers to enhance overall engine performance of your beloved car.

Specification

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns\
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern\
Cooling Type: Oil Cooled\
Wastegate: External Wastegate\
Horse Power: Boost Horse Power up to 300+HP\
\
Compressor: \
Trim: 55 \
Inducer Diameter: 50.5 mm \
Exducer Diameter: 76 mm\
A/R: 0.5\
\
Turbine \
Trim: 73\
Inducer Diameter: 65.5 mm\
Exducer Diameter: 55.9 mm \
A/R: 0.63\
\
Universal 38mm Wastegate with Spring: \
Protect the turbo system from over boosting by venting surges\
High Strength Cast Steel Body with Steel Head\
Comes with 8 psi spring installed\
2 bolt flange style\
\
Turbo Boost Controller:\
Allows adjustable boost psi settings, light weight design to be mount under the hood. Hardware is included\
Adjustable boost knob increases horsepower and torque, depends on boost level.\
Universal fitment and great for all Turbo applications\
CNC Machined Aluminum Body\
1-30 PSI Adjustable\
\
Condition: 100% Brand New \
Bearing Type: Floating Bearing\
Warranty: one year \

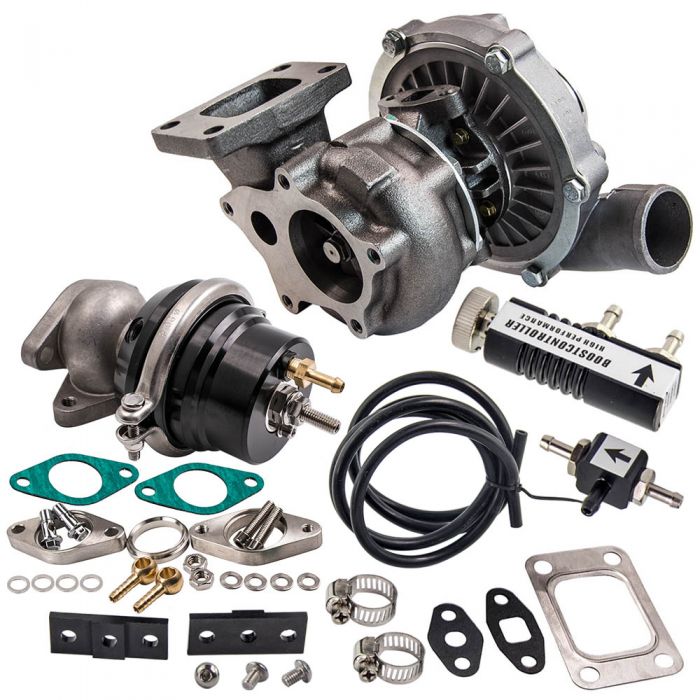

Package Includes:\
1 x Turbocharger \
1 x Turbo Boost Controller Kit\
1 x Wastegate Kit\
(You will get exactly as shown in the picture above)\

Note

* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
* This is universal application turbo, so modification might be required for some vehicles

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
