T25 GT2871 GT2860 Ball Bearing Billet Universal Turbo Turbocharger A/R 0.64/0.6
SKU
3002917901
<p><strong><span style="font-size: 18px;">Application</span></strong><br></p>
<p><span><span>Perfect for all 1.5L-2.0L engines, for all 4 cylinder<br>
Horse Power: Boost Horse Power up to 350+BHP</span></span></p>
<p><span style="font-size: 18px;"> </span></p><span style="font-size: 18px;">
</span><p><span><span style="font-size: 18px;"><strong>Specification</strong></span></span></p>
<p><span><span>Exhaust Inlet Flange: T25 Flange<br>
Exhaust Outlet Flange: 5-Bolt<br>
Turbine Side:<br>
Turbine Trim: 78.9<br>
Turbine Inducer Diameter: 52.8mm<br>
Turbine Exducer Diameter: 46.9mm<br>
Turbine A/R: 0.64<br>
Compressor Side:<br>
Compressor Trim: 42.4<br>
Compressor Inducer Diameter: 45.6 mm<br>
Compressor Exducer Diameter: 70 mm<br>
Compressor A/R: 0.6</span></span></p>
<p><span><span>Oil Inlet: M12*1.25<br>
Oil Outlet: M14 & 2*M8*1.25<br>
Water: M14*1.5</span></span></p>
<p><span><span>Cooling Type: Water + Oil cooled<br>
Wastegate: With Wastegate<br>
Bearing Type: Dual Ceramic Ball Bearing<br>
Horse Power: 350HP<br>
Actuator Type: Vacuum<br>
Turbo Type: Individual<br>
Universal Fitment: Yes<br>
Finish: Matte<br>
Condition: 100% Brand New<br>
Accessories: You will get exactly as shown as picture above<br>
Package Size: 26x 24 x 23 cm <br>
Package Weight: 7700g</span></span></p>
<p> </p>
<p><span><span style="font-size: 18px;"><strong>Features</strong></span></span></p>
<p><span><span>*Product Material<br>
1. Turbine housing: Stainless steel turbine housing - temperature resistant up to 1020℃<br>
2. Steel Turbine Wheel: K419 alloy - high oxidation stability and resistance up to 1000℃<br>
3. Compressor housing: ZL104 aluminum with lightweight <br>
4. Billet Compressor Wheel: Forged CNC full-machined billet aluminum compressor wheel provides a larger horsepower range and maximum boost response</span></span></p>
<p><span><span>*Product Feature<br>
1. Racing turbocharger<br>
2. Excellent high temperature resistance, high efficiency and durability<br>
3. Rich experience in turbo production and own factory<br>
4. High-Speed oil seal ring and Precision clearance</span></span></p>
<p><span><span>* Technology Advantage: <br>
1. 100% balancing Test by TURBOTECHNICS VSR3<br>
2. G3-min-Flow VNT Turbo testing<br>
3. Advanced Actuator Tester/Programmer</span></span></p>
<p> </p>

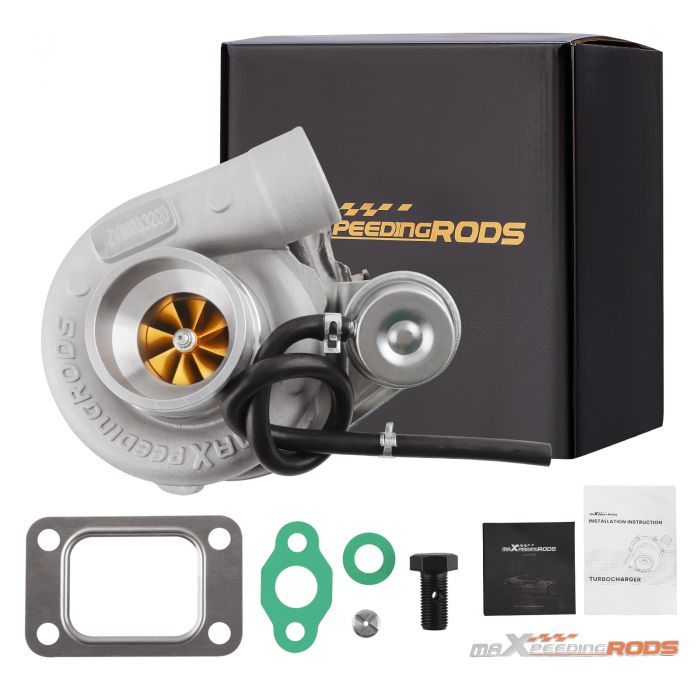

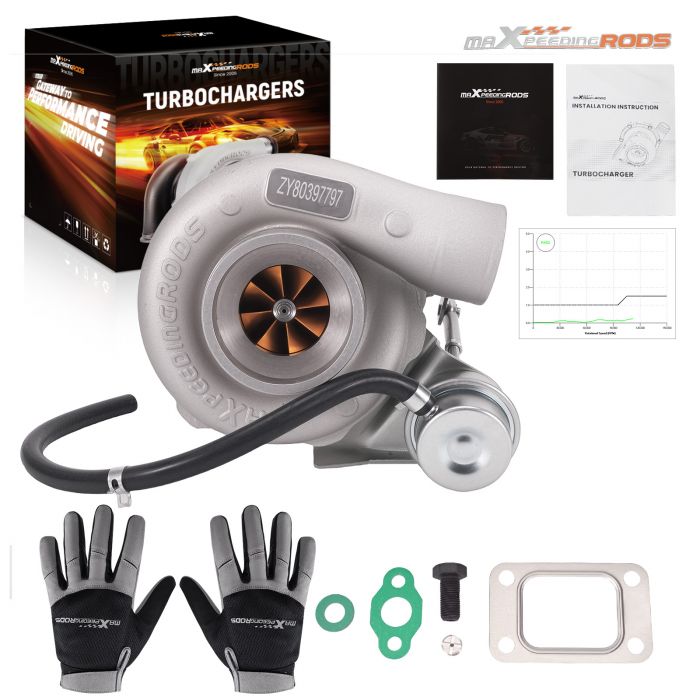

<p><span><span style="font-size: 18px;"><strong>Package included</strong></span></span></p>
<p><span><span>1x Turbocharger<br>
1x Flange gasket<br>
2x Oil feed/drain gaskets<br>
1x Bolt<br>
1x Oil restrictor<br>
1x Manual<br>
1x Brochure<br>
1x Sticker</span></span></p>
<p> </p>
<p><span><span style="font-size: 18px;"><strong>Notice</strong></span></span></p>
<p><span><span>* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.<br>
* Make sure the oil drain line is lower than the turbo itself.<br>
* Gasoline car must install a water cooling device to avoid overheating. <br>
* Ensure exhaust outlet are well sealed by welding<br>
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.<br>
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.<br>
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!</span></span></p>
