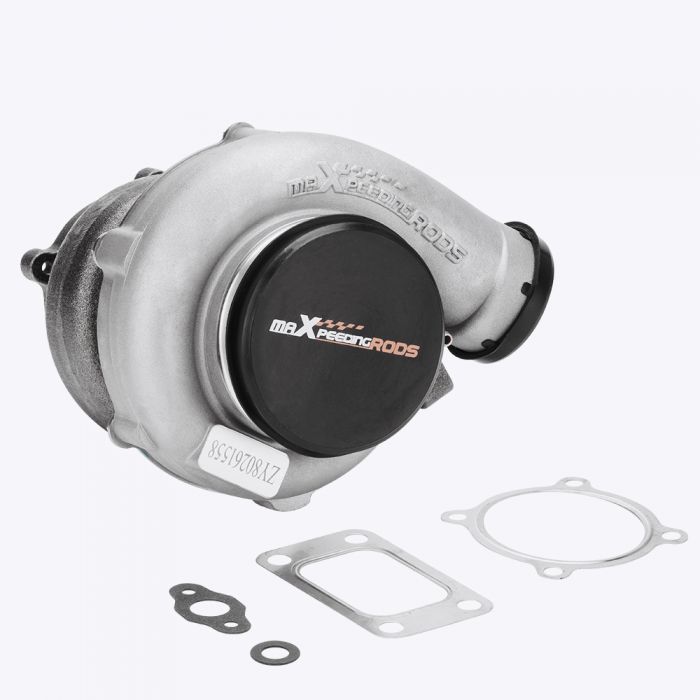

Street Turbocharger Anti Surge GT3582 Turbo GT35 T3 Flange Water Cooled Billet Compressor Wheel Turbocharger

SKU

3002906095

Skip to the beginning of the images gallery

Application

Perfect for all 4/6 cylinder and 2.5L-6.0L engines
\ Capable of Boosting Horse Power up to 600HP
\
\ *Notice:Please confirm that there is enough space in your car to install this turbo before purchasing.

Specification

Turbine Side:
\ Exhaust Inlet Flange: T3 Flange
\ Exhaust Outlet Flange: 4-Bolt
\ Turbine Trim: 84.2
\ Turbine A/R: 0.63
\ Turbine Inducer Diameter: 68mm
\ Turbine Exducer Diameter: 62.4mm
\ Compressor Side:
\ Compressor Trim: 56.9
\ Compressor A/R: 0.7
\ Compressor Inducer Diameter: 61.5mm
\ Compressor Exducer Diameter: 81.5mm
\ Compress Inlet Size(Air intake): 4 inch (103.5mm)
\ Compressor Outlet Size: 2.5 inch (63.6mm)
\
\ Bearing Type: Wet Float
\ Thrust bearing: 270 degree
\ Cooling Type: Water + Oil Cooling
\ Horse Power: Up to 600HP
\ Turbo Type: Individual
\ Universal Fitment: Yes
\ Finish:Matte
\ Wastegate:External Wastegate
\ Oil feed/inlet: M10*7/16-24
\ Oil drian/outlet: 2*M8*1.25
\ Water inlet/outlet: M14* 1.5
\ Maximum PSI: 22
\ Condition: 100% Brand New
\ Accessories: You will get exactly as shown as picture above
\ Pakage Size: 26 x 25 x 23 cm
\ Pakage Weight: 8350g

Package included

1xTurbocharger
\ 2xFlange gaskets
\ 4xOil/Water port gaskets
\ 1xBolt
\ 2xWashers
\ 1xManual
\ 1xBrochure
\ 1xSticker

Feature

*Product Material
\ 1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
\ 2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃
\ 3. Compressor housing：ZL104 aluminum with lightweight
\ 4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response
\
\ *Product Performance
\ 1. Increase 20-40% power for your car
\ 2. Excellent high temperature resistance，high efficiency and durability
\ 3. Rich experience in turbo production and own factory
\ 4. High-Speed oil seal ring and Precision clearance
\
\ * Technology Advantage:
\ 1. 100% balancing Test by TURBOTECHNICS VSR3
\ 2. G3-min-Flow VNT Turbo testing
\ 3. Advanced Actuator Tester/Programmer

Note

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
\ * Make sure the oil drain line is lower than the turbo itself.
\ * Gasoline car must install a water cooling device to avoid overheating.
\ * Ensure exhaust outlet are well sealed by welding
\ * The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
\ * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
\ * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
