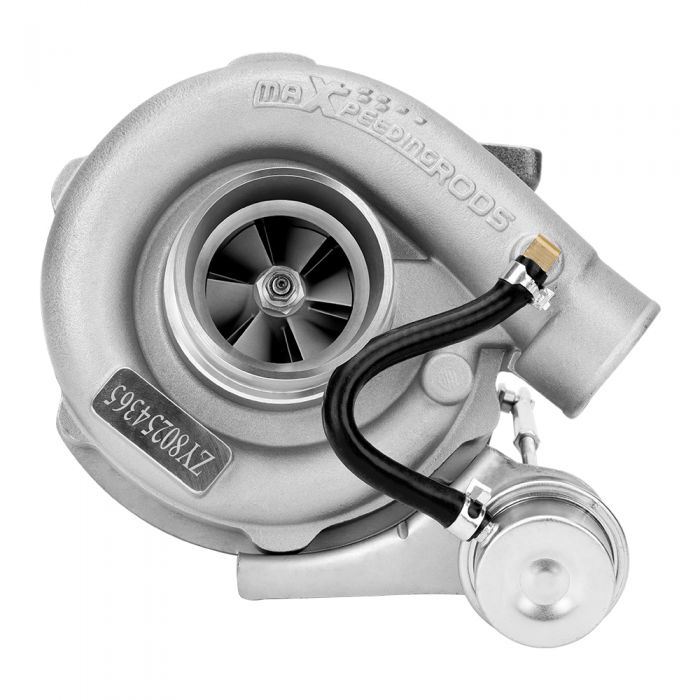

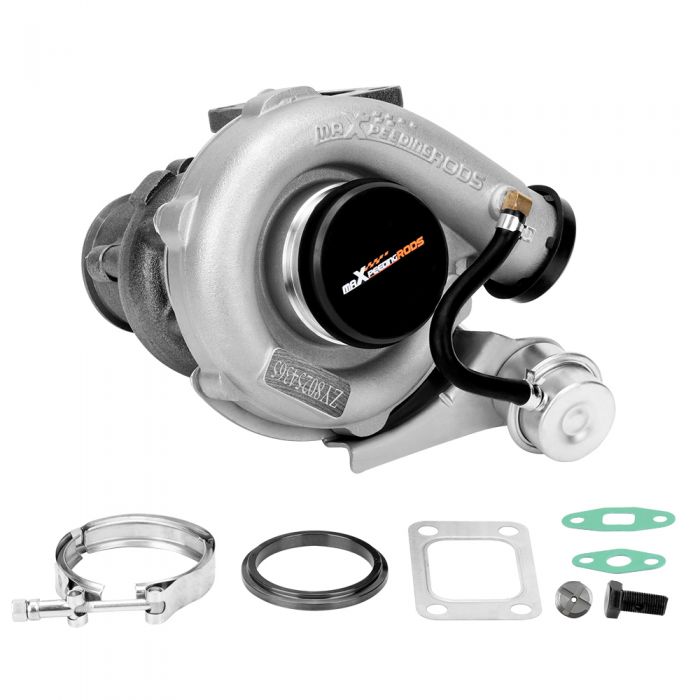

T3 T4 Turbo .63 A/R Oil Hybrid V Band Universal Turbocharger for 4 6 Cyl tcd

Introduction

Are you trying to put together a cost effective turbocharger system for your vehicle? You should know a turbocharged car has about 20-40% more total power than a non-turbo car of the same year, make and model. Well, Maxpeedingrodsentry level universal turbo got just what you're looking for. Maxpeedingrods aftermarket replacement turbo provide the perfect solution by delivering a high-quality turbo at a budget-friendly price.

Application

Perfect for all 4 or 6 CYL, 1.5-2.5L engines（If it exceeds this range, it will cause damage to the turbo）
Horse Power: Capable of Boosting Horse Power up to 420HP
Bearing: Journal Bearing
Maximum PSI 18（1.2Bar）

Specification

Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: V-Band Flange
Bearing: Journal Bearing
Cooling Type: Oil Cooled
Wastegate: Internal Wastegate
Compressor：
Trim: 48.1
A/R: 0.5
Inducer: 52.7
Exducer: 76
Turbine:
Trim: 74.2
A/R: 0.63
Inducer: 64.8
Exducer: 55.8
Turbine exhaust outlet : 79mm
Turbine exhaust inlet：44.7mm/85.8mm
Compressor outlet：78 mm
Compressor inlet：51.5 mm

Features

-100% BALANCING TEST，This Turbocharger you will receive has been balanced using the VSR machine technology.
- Turbine housing：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius.
- Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius.
- Compressor housing：ZL104 aluminum.
- Compressor wheel/blades:
Cast Aluminium with good gas tightness and corrosion resistance.
-High Quality Material.
-Boost Engine Horsepower Significantly.
-Increase Engine Power and Torque Outpout.
-Maintain Combustion Chamber Pressure and Fuel/Air Load.
-Built for Durability and Strength.
-Warranty: one year warranty for any manufacturing defect.

Notice

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended.
* Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
