T3/T4 T04E A/R 57 Trim Turbine 5 Bolt Flange Turbocharger + BOV 18 PSI

for 2.5L and up engines

for 3.2L-5.0L engines in twin turbo application, capable to 800HP

Note:Please confirm that your car's displacement is between 1.5-2.5L .

Please check the size before purchasing and make sure that your car has enough space to install this turbo.

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern

Cooling Type: Oil Cooled
Maximum 18PSI

Wastegate: External Wastegate

Horse Power: Boost Horse Power up to 300+HP

Compressor:

Trim: 55

Inducer Diameter: 50.5 mm

Exducer Diameter: 76 mm

A/R: 0.5

Turbine

Trim: 73

Inducer Diameter: 65.5 mm

Exducer Diameter: 55.9 mm

A/R: 0.63

Blow Off Valve:

Billet Aluminum Body

8 Discharge Ports That Draw In Surrounding Air and Release a Unique Discharge Sound

40mm, Hard-Anodized Valve for Increased Airflow

Dual Spring System Promoted Response and Allows for High Boost Pressures

Holds Up to 30 PSI Boost Pressure

Aggressive for JDM Racing Discharge Sound

2 Bolt Mounting Design

Condition: 100% Brand New

Bearing Type: Floating Bearing

Warranty: one year

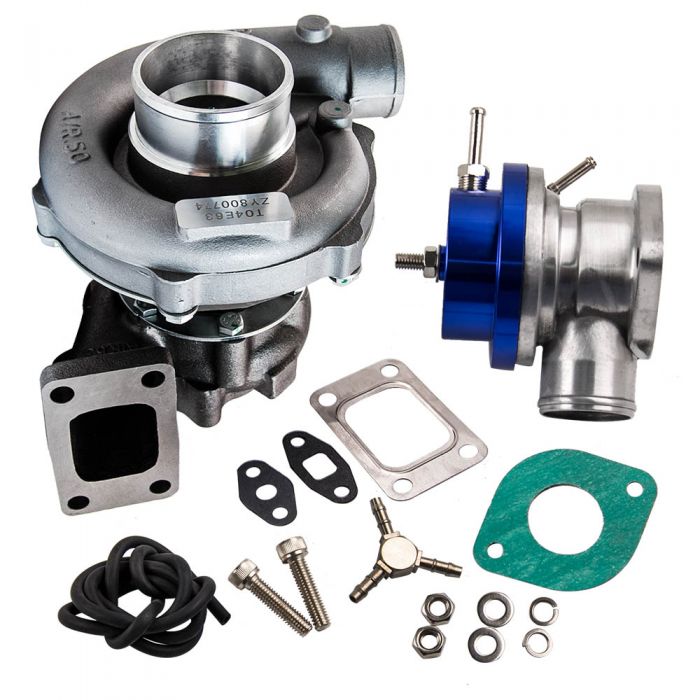

Package Includes:

1 x Turbocharger with gaskets

1 x Blow Off Valve kit

Accessories: You will get exactly as shown in the picture above

Professional installation is highly recommended (No Instruction Included)

For any needs please contact us

This is universal application turbo, so modification might be required for some vehicles
