T3/T4 Turbo+Intercooler+Piping+Wastegate 11PCS Kit compatible for BMW E46 330Ci/330Xi 00-07
Application：
\ \Compatible for BMW E36 325i / 325is i6 1991-1995
\
Compatible for BMW E36 328i / 328is i6 1994-1999
\
Compatible for BMW E36 323i i6 1995-1999
\
Compatible for BMW E36 M3 i6 1992-1999
\
Compatible for BMW E46 323i / 323is / 323Ci / 323Ti i6 1997-2000
\
Compatible for BMW E46 328i / 328Ci i6 1998-2000
\
Compatible for BMW E46 325i / 325Ci / 325Xi / 325Ti i6 2001-2007
\
Compatible for BMW E46 330i / 330Ci / 330Xi i6 2000-2007
Note :This is universal application turbo, so modification might be required for some vehicles.
\ \ \ \Product Specific：
\ \1 x T3/T4 Turbo Charger:
\
Compressor Inlet Diameter: 72mm(2.8")
\
Compressor Outlet Diameter: 53mm（2"）
\
Oil Inlet: 1/8 NPT
\
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
\
Exhaust Outlet (Turbo Pipe) Flange: 5 bolt Flange
\
Turbine Trim: 74.2
\
Turbine Inducer Diameter: 64.8 mm
\
Turbine Exducer Diameter: 55.8mm
\
Turbine A/R: 0.63
\
Compressor Trim: 48.1
\
Compressor Inducer Diameter: 52.7mm
\
Compressor Exducer Diameter: 76 mm
\
Compressor A/R: 0.5
\
Bearing: Wet Float Bearing
\
Turbocharger Overall size: 270*220*220
1 x Intercooler:
\
*Size 27'' x 7'' x 2.5'' inch. Inlet size is 2.5 inch.
\
*Support up to 350 hp for this small intercooler size - tube and fin style .
\
*Intercooler core size: 21*7*2.5
1 x Universal turbo intercooler piping kit:
\
Straight Aluminum Pipe *2
\
45°Aluminum Pipe * 2
\
75°Aluminum Pipe * 2
\
90°Aluminum Pipe * 2
\
2.5" Straight Silicon Hose (Blue) * 6
\
2.5" 90 Degree Hose (Blue) * 2
\
2.5" Stainless Steel T-Clamp * 16
1 x Type-S Blow Off Valve:
\
CNC Billet Aluminum Type RS Style Blow off Valve and 2.5" Inch Type S/Rs Flange Pipe.
\
25PSi Boost! Can hold up to 1000+ HP.
1 x BOV pipe:
\
can be installed anywhere suitable
1 x 35/38MM Wastegate:
\
35/38mm External Waste Gate Kit
1 x Turbo Boost Controller:
\
Up To 30 PSi Boost
1 x Turbo Oil Return / Feeding Line Kit:
\
Turbo Oil Feed + Return Drain Line Kit Combo.
\
It helps circulate oil from the turbo charger to the oil pan. The kit provides a anodized look, and gives a best cooling performance on your turbo and long lasting life.
\
Material: Stainless Steel Braided
1 x 5 Blot Turbo Pipe:
\
2.5" t3/t4 5-bolt stainless steel TIG welded turbo pipe.
\
Pipe length: 13"
\
Fits all of our turbo kits that feature a turbocharger with a 5-bolt exhaust housing.
\
This provides a simple starter solution for connecting your turbo's exhaust to your existing exhaust system.
1 x INTAKE FILTER:
\
Width: 6"
\
Inlet: 3.0"
\
Overall Tall: 3.5"
\
Mesh Tall: 2.5"
Condition:100% Brand New
\ \Warranty：one year

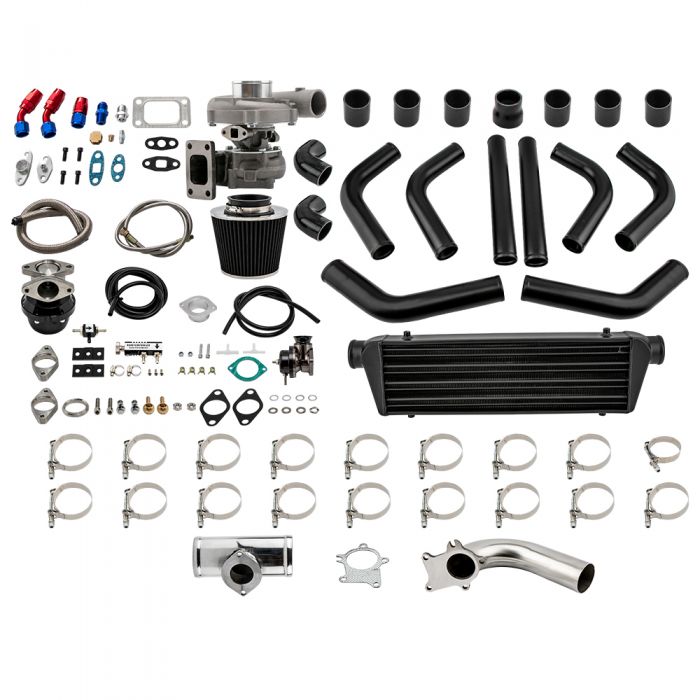

\ \Accessories: You will get exactly as shown in the picture above
\ \ \ \Package included:
\ \1x T3/T4 Turbocharger
\
1x Oil Feed / Return Line
\
1x 35/38mm Wastegate
\
1x 5 Bolt Turbo Pipe
\
1x Turbo Intercooler
\
1x Tubo Boost Controller
\
1x Type-S Blow Off Valve(Random Color)
\
1x BOV Adapter/pipe
\
1x Turbo Piping Kit
\
1x Air filter
Note:
\ \* Need modifications - Professionals ONLY (This is an aftermarket universal turbo kit for DIY purpose, and it's recommended to advanced players but not for beginners. )
\
* we will not be responsible for man-made installation damage.
