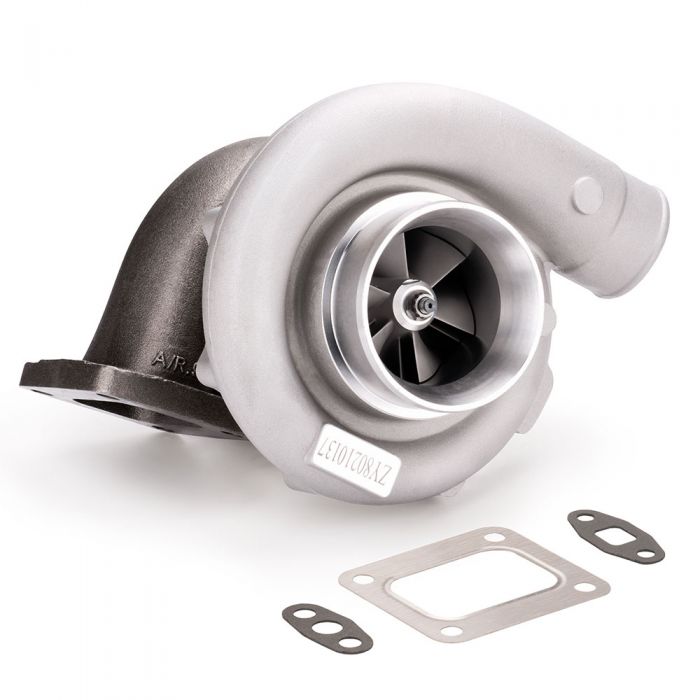

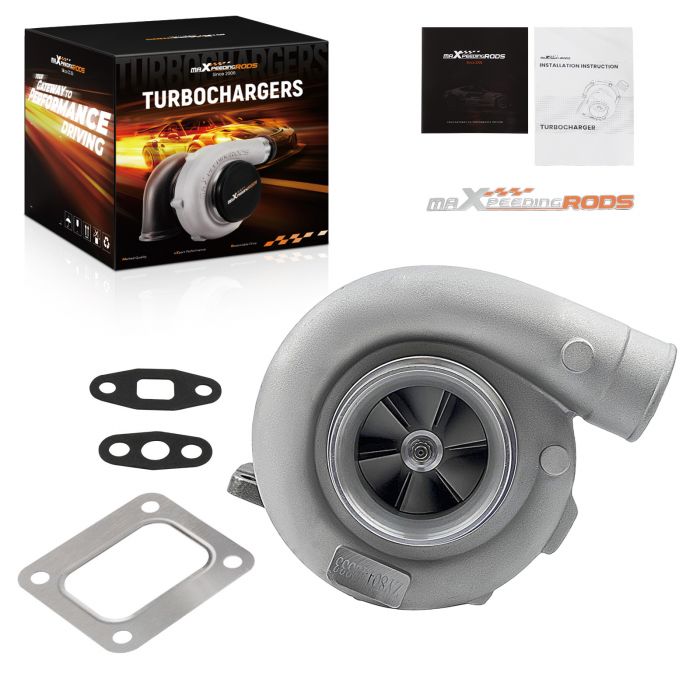

T76 Turbo Turbocharger T4 Flange .96 A/R P Trim 800+ HP 76mm Compressor

Introduction

Are you trying to put together a cost effective turbocharger system for your vehicle? You should know a turbocharged car has about 20-40% more total power than a non-turbo car of the same year, make and model. Well, Maxpeedingrods universal turbocharger got just what you're looking for. Don't hesitate to get a turbo to boost your car's power.

Application

Universal turbo for V6 V8 Cars，Perfect fit for Above 3.0L Engines, 6/8 cylinder
Horse Power: Boost Horse Power up to 500BHP

Specification

Exhaust Inlet (Turbo Manifold) Flange: T4 Flange
Exhaust Outlet(Downpipe) Flange: V-Band
Turbine Inducer Diameter: 73.5
Turbine Exducer Diameter: 64.3
Turbine Trim: 76.5
Turbine A/R: 0.96
Compressor Trim: 56.1
Compressor Inducer Diameter: 76.6
Compressor Exducer Diameter: 102.3
Compressor A/R: 0.8
Bearing: Wet Float
Cooling Type: Oil Cooled
Warranty: one year for any manufacture defects

Features

* Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700℃.
* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃.
* Cast aluminium blades with good gas tightness and corrosion resistance.
* Capable of Boosting Horse Power up to 500BHP.

Notice

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
* Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended(No Instruction Included).
