Complete Coilovers Kit compatible for Mitsubishi Eclipse 2000-2005 Coil Spring Struts

SKU

3002104330

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1. Adjustable Height

Allowing you adjust the whole coilovers to your favorite ride heigt.
Adjustable lower mount allows maximum suspension travel

2. High Quality Components

Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness
Pillow ball top mount is designed for improving Steering feel and response

3.Hi-Tensile Performance Spring

Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved

4.Twin-tube Constructioneal

Dust boot protects damper seal
Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for Mitsubishi Eclipse (3rd-Gen) D53A/D52A 2000-2005

Specification

Top mounts: pillow ball top mount with camber plate front, standard rubber top mount rear.\
Damping: No adjustable damper force\
Front Spring Rate: 10 kg/mm (556 lbs/in)\
Rear Spring Rate: 7 kg/mm (392 lbs/in)\
Spring length Front: 200mm\
Spring length Rear: 200mm \
Coilover overall length Front: 430mm-570mm\
Coilover overall length Rear: 480mm-540mm\
Adjustable Height: Yes lowering 1" to 3"\
Shock type: Twin tube\
Spring Preload: 7-10 mm\
Color: gold

Package included

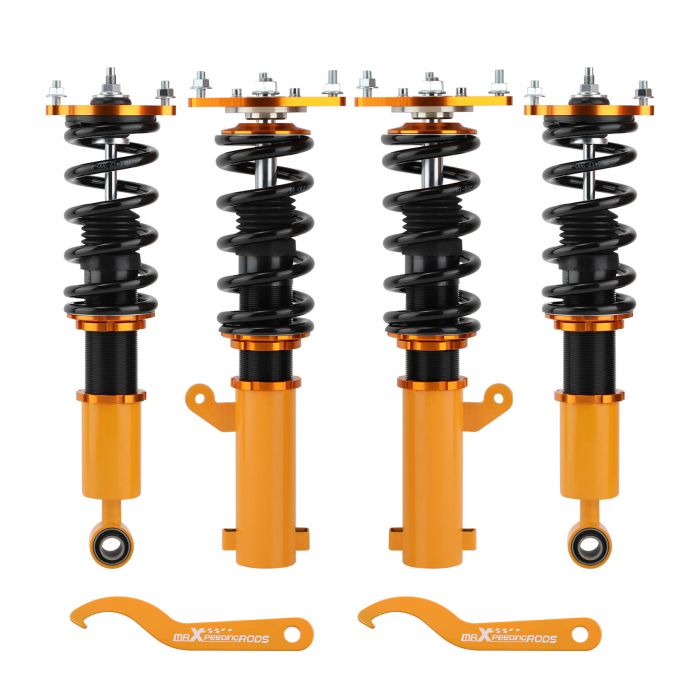

product included: complete coilovers 2 front and 2 rear,a pair wrench for height adjustment.

Dimension

Gross weight: 25.28kg\
Package size: 63*51*21cm

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.\
2.Camber plate top mounts help to eliminate the need for a separate camber kit.（Only Front)\
3.Pillow ball top mount - It improves the steering feel and response.（Only Front)\
4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. (Only Rear)\
5. Twin-Tube structure allows sufficient stroke within the shock absorber.\
6. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.\
7. Separate height adjustment does not affect damper stroke.\
8. Height can be adjusted with coilovers installed on the vehicle.\
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.\
10. Height Adjustment tools included. \
11. Full rebuildable.
