Suspension Coil Struts Tuning Coilovers Kits compatible for Toyota Corolla 03-08 E120 E130

SKU

3002104259

Skip to the beginning of the images gallery

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for Toyota Corolla 8th Gen. (E130) 2003-2008 USA
\ Compatible for Toyota Matrix,XR,XRS (E130) 2003-2008
\ Compatible for TOYOTA COROLLA 8th Gen (_E12_) (01/2001-12/2007) other market

Specification

Top mount: front camber plate; rear rubber
\ Front spring rate:12kg/mm (672 lbs/in)
\ Rear spring rate:8 kg/mm (448 lbs/in)
\ Adjustable height: Yes lowering 1" to 3"
\ Spring Preload: 7-10 mm
\ Shock type：Twin tube
\ Color: blue body with black spring

Package included

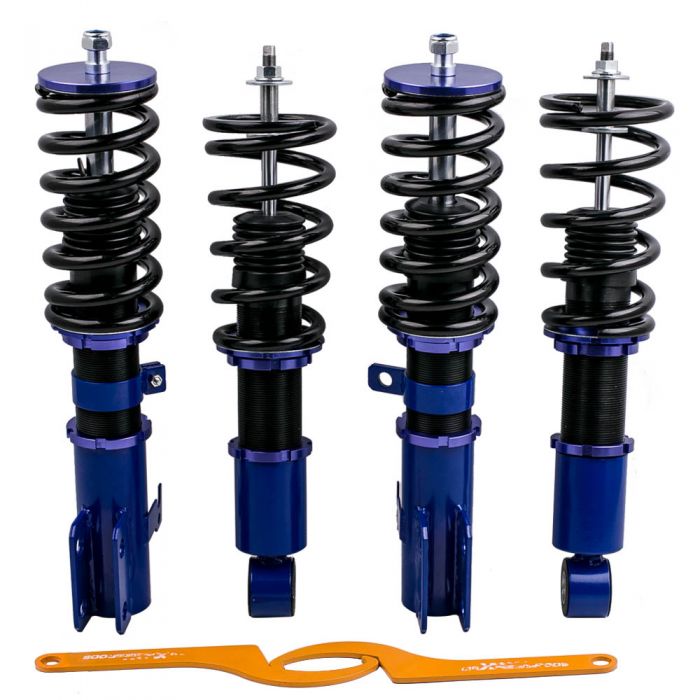

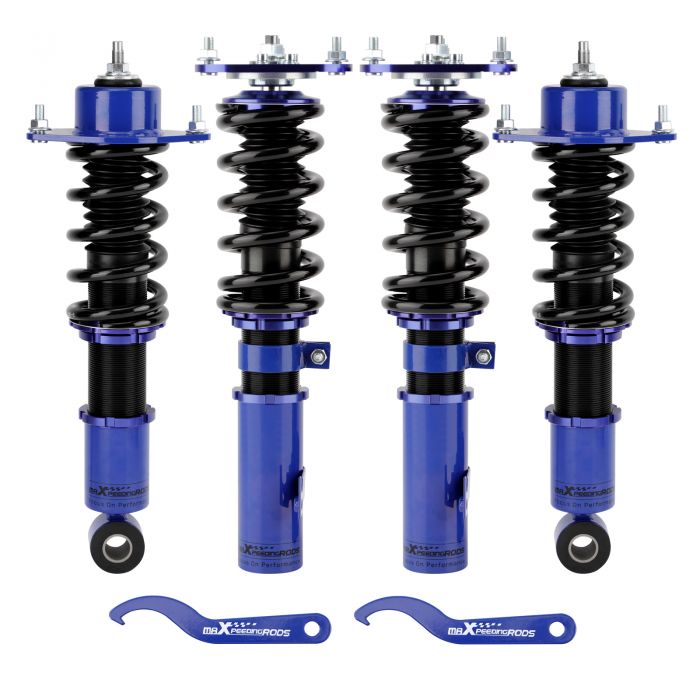

Complete coilovers assembly 2 front and 2 rear
\ A pair wrench for height adjustment

Dimension

Package dimension : 63*52*21
\ Weight: 24620g

Feature

1.Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
\ 2.Camber plate top mounts help to eliminate the need for a separate camber kit.
\ 3.Twin-Tube structure allows sufficient stroke within the shock absorber.
\ 4.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
\ 5.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
\ 6.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
\ 7.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
\ 8.Steel shock bodies with special surface treatment to improve the durability.
\ 9.Full rebuildable

Note

Note: Please note this item does not fit for Corolla E150 "Ascent" model .
\ Only fit Corolla Matrix E130 2003-2008
