T04E Turbo Turbocharger Manifold Kit + Oil Lines compatible for Nissan Patrol Y60 Y61 TD42

SKU

3002105373

Skip to the beginning of the images gallery

Application

Compatible for Nissan Patrol Safari Y60 GR Petrol 4.2L TB42 TB42S TB42E
Compatible for Nissan Patrol Safari Y60 GR Petrol 4.5L TB45 TB45S TB45E
Compatible for Nissan Patrol Safari Y60 GR GQ Diesel Turbo Diesel 4.2L TD42
Compatible for Nissan Patrol Safari Y61 GR Diesel 4.2L TD42 TD422 TD42T3

Specification

Horse Power: Capable of Boosting Horse Power up to 400HP
Cooling Type: Oil Cooled

Maximum PSI 19（1.3Bar）

Turbo Details
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: 5 bolt Flange
Turbine Trim: 73
Turbine Inducer Diameter: 65.5 mm
Turbine Exducer Diameter: 55.9mm
Turbine A/R: 0.57
Compressor Trim: 44
Compressor Inducer Diameter: 50.5 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Wet Float Bearing

Oil line Details
OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

Manifold Details

Turbo flange: T3
Mount type: top mount / high mount
External Wastegate: 38mm. You can plate it off if intending to use internally wastegated Turbo (The blocking plate is included as shown in the picture)

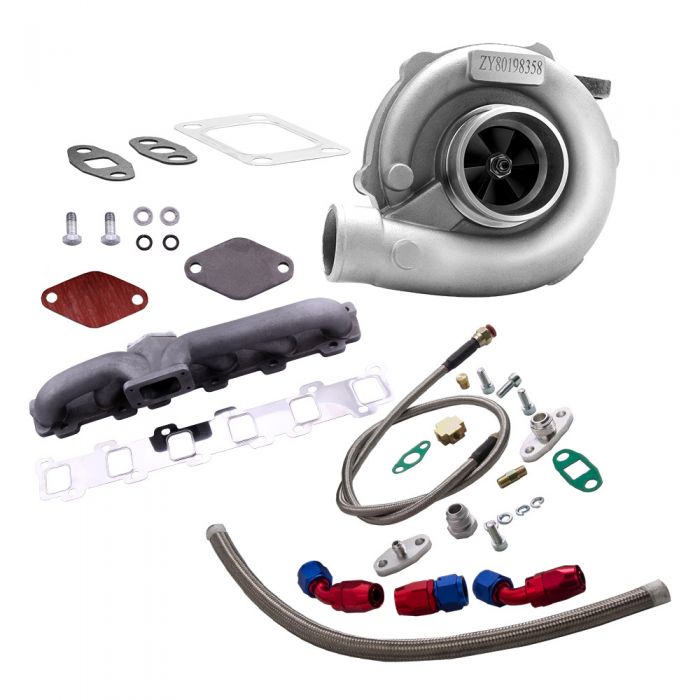

Accessories: You will get exactly as shown in the picture above

Condition: 100% brand new

Warranty: one year warranty for any manufacturing defect

Notice

* Please check the specifications carefully before ordering. If you are not sure about these information, please feel free to contact us
* This is an aftermarket application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
