Turbo charger Compatible for 2006-2014 Mazda CX-7 2.3L MZR DISI 2.3 Turbo L3-VDT engine 190kW 258HP

Application

Compatible\ for 2006-2014 Mazda CX-7 2.3L MZR DISI 2.3 Turbo L3-VDT engine 190kW 258HP

Compatible\ for 2006-2014 Mazda speed 3 2.3L with MZR DISI 2.3 Turbo L3-VDT engine 190kW\ 258HP

\ \ \ \

Compatible\ for 2006-2014 Mazda speed 6 2.3L with MZR DISI 2.3 Turbo L3-VDT engine  190kW 258HP

OE/Part number

53047109904, 53047109907, L33L13700B,

L33L13700C, L3Y11370ZC, L3Y41370ZC,

L3Y31370ZC, L3YC1370Z, L3YC1370ZA

Specification

Turbo Model: K0422-582

Engine: DISI L3-VDT

Cooled Type: Oil+Water cooled

Bearing Type: Journal Bearing

Thrust bearings: 270 Degrees

Horsepower: 260HP

Condition: 100% Brand New

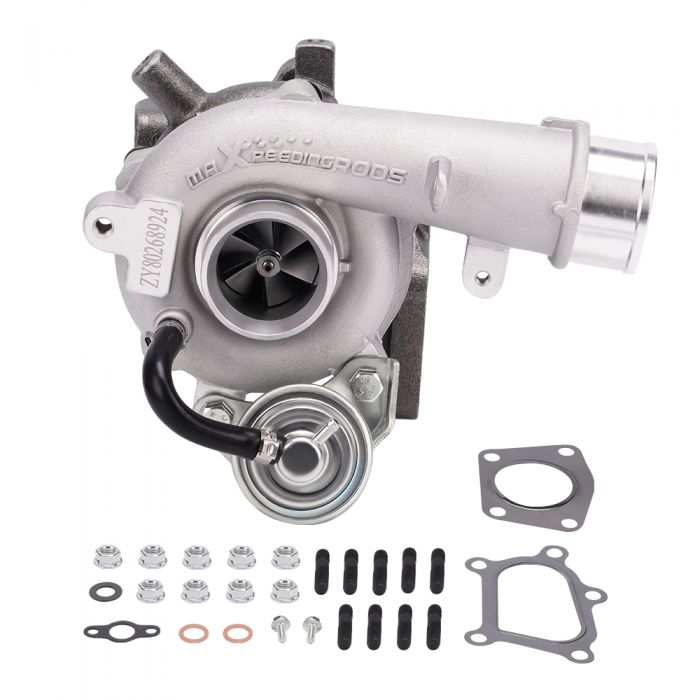

Accessories: You will receive the parts exactly as shown in the picture above

Package Size：26x 24x 22.5 cm

Package Weight: 7800g

Feature

* Product Material

1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃

3. Compressor housing: ZL104 aluminium with lightweight

4. Compressor wheel/blades: Cast aluminium blades – superior airtightness & corrosion resistance

* Product  Performance

1. OEM quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Product Certification: TÜV ISO 9001 CERTIFIED

* Technology Advantage:

1. 100% balancing Test by TURBO TECHNICS  VSR3

2. G3-min-Flow VNT Turbo testing

3.  Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
