Compatible for Audi A3 upgraded Engine FT 190 4EB/4EA/4EC 1996-2009 Turbocharger with Billet Compressor Wheel
Application
Compatible for Audi A3 upgraded Engine FT\
190 4EB/4EA/4EC 1996-2009
Compatible for Audi TT upgraded Engine FT\
190 4EB/4EA/4EC 1996-2009
Compatible for Compatible ford Transit IV\
2.5 TD Engine FT 190 4EB/4EA/4EC 1991-
Compatible for Volkswagen BEETLE, Seat\ IBIZA upgraded Engine FT 190 4EB/4EA/4EC 1996-2009
Compatible for Audi A3 UPGRADED 1.8L P\
AUM 96 -
Compatible for Audi A3 1.8L P 96 - 99
Compatible for Audi A3 1.8T 1.8L P\
ARZ/APP/AUQ 00 -
Compatible for Audi TT 1.8T 1.8L P\
APP/AUM/AUQ/ARY 99 -
Compatible for Audi A4 1.8T 1.8L P\ AVJ 01 -
Compatible for VW BEETLE 1.8T 1.8L P\
AUM/AWU/AWV/BKF/BNU 00 -
Compatible for VW BORA SPORT 1.8T 1.8L P\
AUM /AWU/AUQ 02 -
Compatible for VW GOLF GTI 1.8L P AUM\ /AWU/AUQ 00 -
Compatible for Seat LEON 1.8T 1.8L P AJQ\
00 -
Compatible for Seat LEON CUPRA 1.8L P ARY\
02 -
Compatible for Skoda OCTAVIA 1.8T 1.8L P\
AUQ 02 -
Compatible for Skoda SUPERB 1.8T 1.8L P\
AUQ 02 -
*IMPORTANT NOTICE:
1. This is an upgraded K04 turbo for\
K03-053 & K03 -052. Do not for K04-022.
2.K04 -001 turbo is different from K03-052\
＆ K03-053
（1）some modifications are needed,compressor intake size is bigger than\
K03-052 or K03-053
\
K03-052 ＆K03-053 compressor intake size is 45mm
\
K04-001 compressor intake size is 48.7mm
（2）Silicone hose may need for K04-001\
compressor intake connection.
\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \
3. Make sure your OE number is correct for\ K04-001, K03-052 and K03-053
K04-001 part number/OE number:
53049500001,5304-950-0001, 5304 950 0001,
53049887501,5304-988-7501, 5304 988 7501,
53049880001,5304-988-0001, 5304 988 0001,
53049700015,5304-970-0015, 5304 970 0015,
06A-145-705HP, 06A145705HP,
*IMPORTANT NOTICE:
This is an upgraded K04 turbo for K03-053 & K03 -052 (few modification may need for K03-052)
K03-052 Part/OE number:
53039700052,5303 970 0052,5303-970-0052,
53039880052,5303 988 0052,5303-988-0052,
53039880094,5303 988 0094,5303-988-0094,
06A145704T, 06A145713D, 06A145713DX, 06A145713DV, 06A145713F, 06A145713FX,8299299564, 8299299564,
K03-053 Part/OE number:
53039880053,5303 970 0053,5303-970-0053,
53039880058,5303 988 0058,5303-988-0058,
06A145681H,06A145702P,06A145704S,
06A145713B,06A145713L,06A145713M,
Turbo Model: K04-001
Engine Model: 1.8L-5V
Engine Code: AJQ, APP, AUM, AUQ, ARY
Cooling Type: Water & Oil Cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Horsepower: 400HP
Turbo Type: Individual
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New

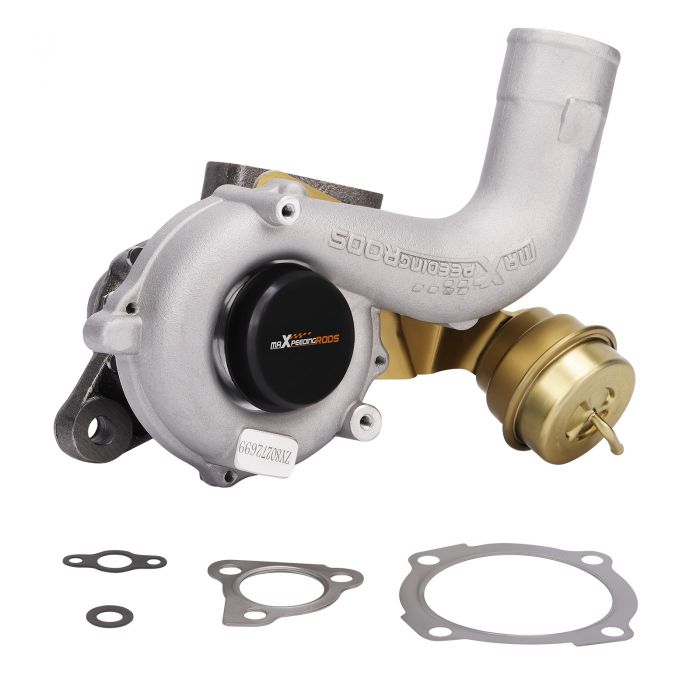

Accessories: You will receive the parts exactly as shown in the picture above.
Package Size:30 x 27 x 24cm
Package Weight: 6900g
Package included
1xTurbocharger
2xFlange gasket
2xOil port gaskets
1xManual
1xBrochure
1xSticker
Feature
*Product Material
1. Turbine housing: Silicon-Molybdenum - temperature resistant up to 850℃
2. Steel Turbine Wheel: K419 alloy - high oxidation stability and resistance up to 1000℃
3. Compressor housing: ZL104 aluminium with lightweight
4. Billet compressor wheel: forged full-machined billet aluminium compressor wheels with a larger horsepower range and better boost response
*Product Performance
1. OEM fitment turbo with upgraded material and performance
2. Excellent high-temperature resistance, high efficiency and durability
3. Rich experience in turbo production and own factory
4. High-Speed oil seal ring and Precision clearance
5. Forged precision-machined billet aluminium compressor wheels with better boost response
* Technology Advantage:
1. 100% balancing Test by TURBO TECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Note
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
