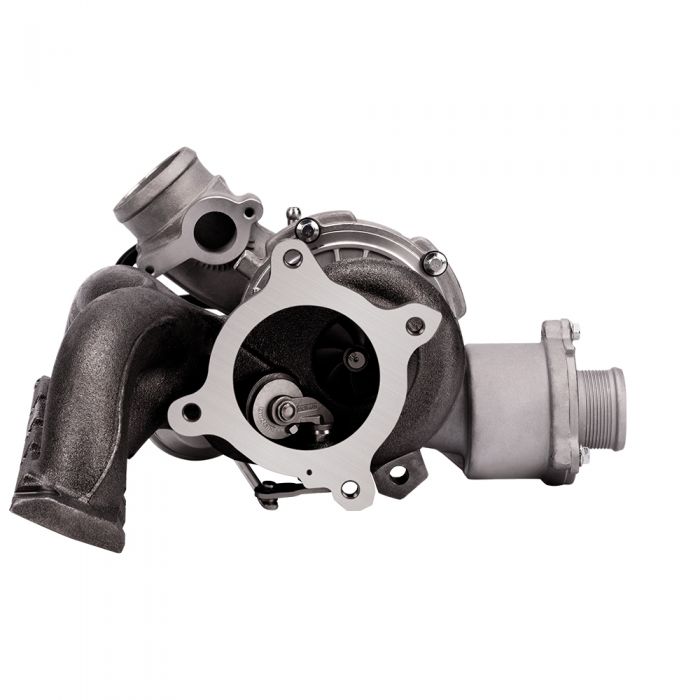

2009-15 for Audi A4, A4 Avant, Quattro Avant with CDNB,CDNC, CAEA, CAEB, CFKA Engine Turbocharger with Billet Compressor Wheel

SKU

3002906111

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

2009-15 compatible for Audi A4, A4 Avant, Quattro Avant with CDNB,CDNC, CAEA, CAEB, CFKA Engine
\ 2009-15 compatible for Audi A5 Coupe, A5 Sportback with CDNB,CDNC, CAEA, CAEB, CFKA Engine
\ 2010-15 compatible for Audi A5 Cabriolet with CDNB,CDNC, CAEA, CAEB, CFKA Engine
\ 2009-15 compatible for Audi Q5 2.0L, S4 Avant, S5 Coupe, Sportback with CDNB,CDNC, CAEA, CAEB, CFKA Engine
\ 2008- Compatible for Audi A5 Coupe 3.2L with CDNB,CDNC, CAEA, CAEB, CFKA Engine
\ 2008-15 compatible for Audi A4, S4 with CDNB, CDNC, CAEA, CAEB, CFKA Engine
\ 2008-15 compatible for Audi A5, S5 with CDNB, CDNC, CAEA, CAEB, CFKA Engine
\ 2008-15 compatible for Audi A6 with CDNB, CDNC, CAEA, CAEB, CFKA Engine
\ 2008-15 compatible for Volkswagen Passat with CDNB, CDNC, CAEA, CAEB, CFKA Engine
\ 2008-15 compatible for Seat Exeo with CDNB, CDNC, CAEA, CAEB, CFKA Engine
\
\ *this turbo is not compatible for Audi A4 Quattro Base Sedan 4-Door 2.0L 1984CC 121Cu. In. l4 GAS DOHC 2012

OE/Part number

06H145702L,06H 145 702 L, 06H 145 702L,
\ 06H145702S, 06H 145 702 S, 06H 145 702S,
\ 06H145702G,06H 145 702 G,06H 145 702G,
\ 06H145702Q,06H 145 702 Q, 06H 145 702Q ,
\ 06H145702R,06H 145 702 R, 06H 145 702R ,
\ 06H145702T, 06H 145 701 T, 06H 145 701T ,
\ 06H145702LV, 06H145702LX,
\ 06H145702SV,06H145702SX,
\ 06H145702GV,06H145702GX,
\ 06H145702QV,06H145702QX,
\ 06H145702RV,06H145702RX,
\ 06H145702TV,06H145702TX,
\ 53039700291, 5303-970-0291,
\ 53039880291, 5303-988-0291,

Specification

Turbo Model: RHF5
\ Engine Code:CDNB, CDNC, CAEA, CAEB, CFKA, TFSI
\ Cooling Type:Water Cooled
\ Bearing Type: Floating Bearing
\ Trust Bearing:360 degree
\ Hosepower: Up to 160HP
\ Turbo Type:Individual
\ Universal Fitment: No
\ Finish: Matte
\ Condition: 100% Brand New
\ Accessories: You will get exactly as shown in the picture above
\ Package Size:49 x 38 x 26 cm
\ Package Weight: 12850g

Package included

1xTurbocharger
\ 1xFlange gaskets
\ 2xOil/Water port gaskets
\ 1xManifold gasket
\ 1xManual
\ 1xBrochure
\ 1xSticker

Feature

*Product Material
\ 1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
\ 2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃
\ 3. Compressor housing：ZL104 aluminum with lightweight
\ 4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response
\
\ *Product Performance
\ 1. OEM fitment turbo with upgraded material and performance
\ 2. Excellent high temperature resistance，high efficiency and durability
\ 3. Rich experience in turbo production and own factory
\ 4. High-Speed oil seal ring and Precision clearance
\
\ * Technology Advantage:
\ 1. 100% balancing Test by TURBOTECHNICS VSR3
\ 2. G3-min-Flow VNT Turbo testing
\ 3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
\ * Professional installation is highly recommended
\ * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
