Turbo Charger compatible for AUDI A4 A5 Q5 2.0 TFSI 2009 -2012 Quattro 180-211hp 06H145702L
\ \
Please confirm your original turbo part number before purchasing. The part number is located on the turbo NAMEPLATE of the compressor housing, you can check it with your mechanic as well.
\ \\ \
Applications:
\ \Compatible for Audi A5 Coupe, A5 SportBack 2.0 TFSI 2009-2012
\ \Compatible for Audi A5 Cabriolet 2.0 TFSI 2010-2012
\ \Compatible for Audi Q5 2.0L, S4 Avant, S5 Coupe, S5 Sport Back 2.0 TFSI 2009-2012
\ \Compatible for Audi A4, A5, A6, S4, S5 2.0 TFSI 2008-2010
\ \Compatible for Volkswagen Passat 2.0 TSI 2008-2010
\ \Compatible for Seat Exeo 2.0 TSI 2008-2010
\ \Compatible for Audi A4 2.0p 180-211bhp 2008- CAEA, CDNB, CDNC, CFKA, 8K2, 8K5, 8KH, B8, TFSI, for Quattro, Allroad
\ \Compatible for Audi A5 2.0p 180-211bhp 2008- CAEA , CAEB, CDNB, CDNC, 8F7, 8T3, 8TA, TFSI, for Quattro
\ \Compatible for Audi Q5 2.0p 180-211bhp 2008- CDNB, CDNC, 8R, TFSI,for Quattro
\ \Compatible for Seat Exeo 2.0p 211bhp 2010- CDND, 3R2, 3R5, TFSI
\ \\
(Note: *this turbo is not compatible for Audi A4 Quattro Base Sedan 4-Door 2.0L 1984CC 121Cu. In. l4 GAS DOHC 2012)
\ \\ \
\
Part Number & OEM Number:
06H145702L , 06H 145 702 L , 06H 145 702L, 06H145702LV ,
\ \06H145702LX, 06H145702S , 06H 145 702 S , 06H 145 702S,
\06H145702SV , 06H145702SX, 06H145702G , 06H 145 702 G ,
\ \06H 145 702G , 06H145702GV , 06H145702GX, 06H145702Q ,
\ \06H 145 702 Q , 06H 145 702Q , 06H145702QV , 06H145702QX,
\ \06H145702R , 06H 145 702 R , 06H 145 702R , 06H145702RV ,
\ \06H145702RX, 06H145701Q , 06H 145 701 Q , 06H 145 701Q ,
\ \06H145702T , 06H145702TV, 06H145702TX, 5303-988-0291,
\ \53039700291, 5303-970-0291 , 53039880291
\\
Feature:
\ \* Product Material
\
1. Turbine housing : Ductile iron QT450-10- temperature resistant up to 700℃
\
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
\
3. Compressor housing: ZL104 aluminum with lightweight
\
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
* Product Performance
\
1. OEM-quality and size with little modification
\
2. Rich experience in turbo production and own factory
\
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
\
1. 100% balancing Test by TURBOTECHNICS VSR3
\
2. G3-min-Flow VNT Turbo testing
\
3. Advanced Actuator Tester/Programmer
\
Specification:
\
Turbo Model: RHF5
\
Engine Code: CDNB, CDNC, CAEA, CAEB, CFKA, TFSI
\
Cooling Type: Water & Oil Cooled
\
Bearing Type: Floating Bearing
\
Trust Bearing: 360 degree
\
Hosepower: Up to 160HP
\
Turbo Type: Individual
\
Condition: 100% Brand New
\
Package Size: 49 x 38 x 26 cm
\
Package Weight: 12850g
\
Warranty: one year warranty for any manufacturing defect
\

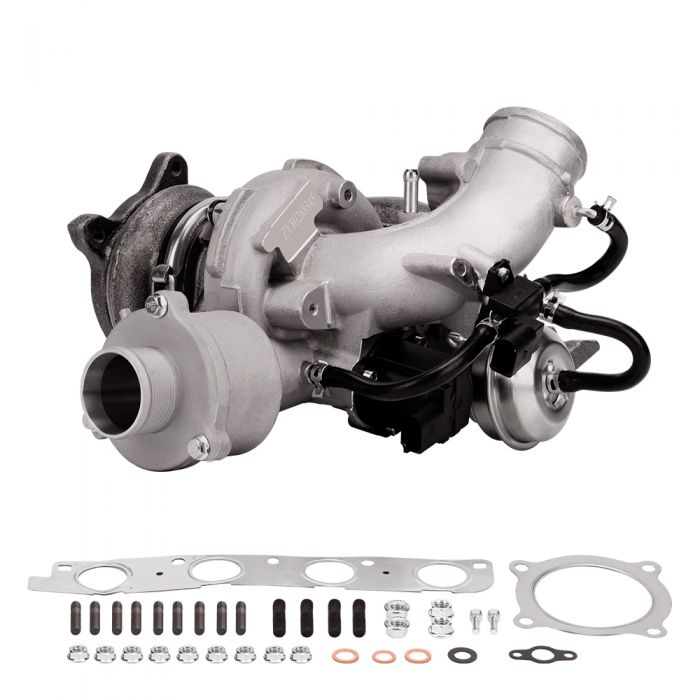

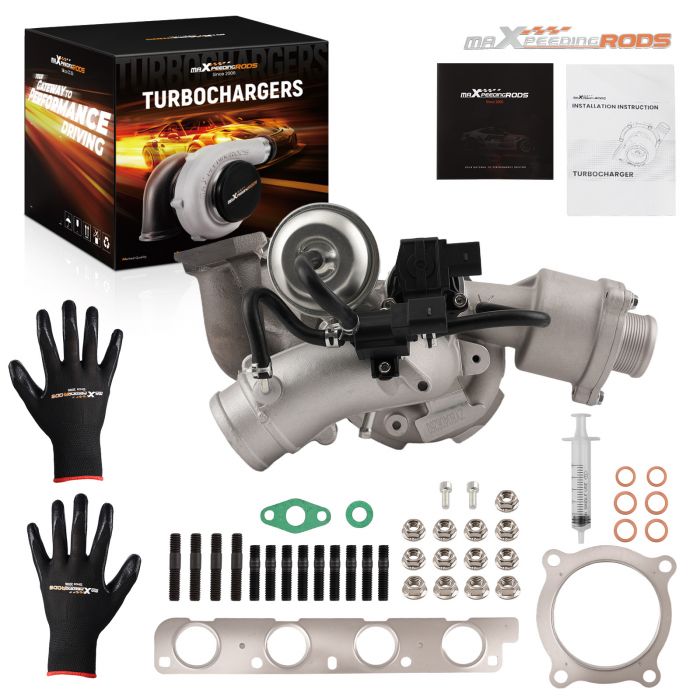

Accessories: You will get exactly as shown in the picture above
\ \
Note:
\
*Please check the Turbo Model, Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the right one for your engine. If you are not sure about these information, Please feel free to contact us
\
*Professional installation is highly recommended (No Instruction Included)
