Turbo Kit for LS1 LS2 LS6 Engine w/ BOV Intercooler WastegateAir Filter 15PCS
SKU
3002906154
Turbo Kit for LS1 LS2 LS6 Engine w/ BOV Intercooler WastegateAir Filter 15PCS
<p><span><span style="font-size: 18px;"><strong>Application</strong></span></span></p>
<p><span><span>For 4.5-6L Pickup<br>
For LS1 LS2 LS6 engine</span></span></p>
<p> </p>
<p><span><span style="font-size: 18px;"><strong>Product Specific</strong></span></span></p>
<p><span><span><span><strong>1 x Turbochager</strong></span><br>
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns<br>
Exhaust Outlet (pipe) Flange: V-Band Flange<br>
Bearing: Journal Bearing<br>
Cooling Type: Oil Cooled<br>
Wastegate: Internal Wastegate<br>
Thrust Bearings: 270 Degrees <br>
Compressor Trim: 48.1<br>
Compressor A/R: 0.5<br>
Compressor Inducer: 52.7mm<br>
Compressor Exducer: 76mm<br>
Turbine Trim: 74.2<br>
Turbine A/R: 0.63<br>
Turbine Inducer: 64.8mm<br>
Turbine Exducer: 55.8mm<br>
Compressor outlet：78 mm<br>
Compressor inlet：51.5 mm<br>
Turbine exhaust outlet : 79mm<br>
Turbine exhaust inlet：44.7mm（length）/85.8mm（width）<br>
Hosepower: Up to 420 HP<br>
Condition: New<br>
Package Size:29x 27x 24 cm<br>
Package Weight: 9160g<br>
<span><strong>1 x Intercooler</strong></span><br>
Large design cools down the turbocharged air efficiently<br>
<span><strong>1 x Intercooler piping kit: </strong></span><br>
[16] stainless steel worm gear clamps<br>
[2] 2.5'' 90 degree silicone couplers<br>
[6] 2.5'' straight silicone couplers<br>
[2] 90 degree 2.5'' bends<br>
[2] 60 degree 2.5'' bends<br>
[2] 45 degree 2.5'' bends<br>
[2] straight 2.5'' pipes<br>
<span><strong>1 x Turbo Oil Kit</strong></span><br>
high temperature 550psi oil return line<br>
Premium gaskets & hardware for the turbocharger<br>
<span><strong>1 x Boost Controller Kit</strong></span><br>
Can be setup to adjust boost PSI on the fly<br>
Can be adjusted for any PSI level desired<br>
<span><strong>1 x Blow Off Valve Kit</strong></span><br>
Quality design will not leak under high boost conditions<br>
<span><strong>1 x Wastegate</strong></span><br>
External style<br>
Strong construction<br>
Keeps the heat where it belongs<br>
<span><strong>1 x Battery Relocation Kit</strong></span><br>
Full aluminum construction<br>
<span><strong>1 x Slimline Cooling Fan</strong></span><br>
1.25" thick outside perimeter<br>
2.50" thick inside perimeter<br>
<span><strong>1 x Electronic Turbo Timer</strong></span><br>
Ensures a proper cool down for your turbocharged car every time<br>
<span><strong>1 x Fuel Pressure Regulator and Filter Kit</strong></span><br>
Fully adjustable<br>
-6AN billet aluminum inline filter<br>
<span><strong>1 x Stainless Crossover</strong></span><br>
Easy v-band flange design<br>
Polished finish<br>
<span><strong>1 x Oil Catch Can</strong></span><br>
Show like high quality polish<br>
Includes complete install kit<br>
Flanges can be installed at user discretion<br>
<span><strong>1 x Heatwrap</strong></span><br>
50' ft roll in length<br>
1.00" wide roll<br>
<span><strong>1 x Air Filter</strong></span><br>
4" Cone High flow Washable<br>
Protects turbo units and engine</span></span></p>
<p> </p>

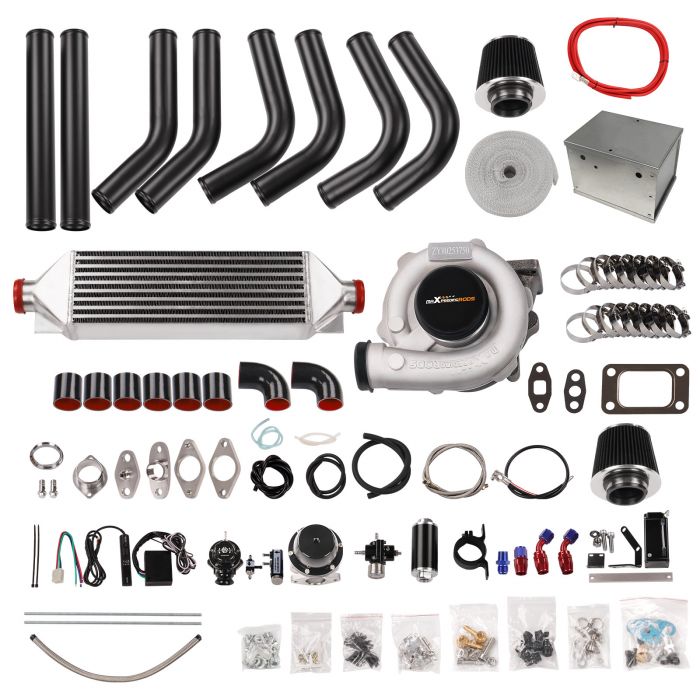

<p><span><span style="font-size: 18px;"><strong>Package included</strong></span></span></p>
<p><span><span>1 x T3/T4 Turbocharger<br>
1 x Intercooler<br>
1 x Intercooler piping kit<br>
1 x Turbo Oil Kit<br>
1 x Boost Controller Kit<br>
1 x Blow Off Valve Kit<br>
1 x Wastegate<br>
1 x Battery Relocation Kit<br>
1 x Slimline Cooling Fan<br>
1 x Electronic Turbo Timer<br>
1 x Fuel Pressure Regulator and Filter Kit<br>
1 x Stainless Crossover<br>
1 x Oil Catch Can<br>
1 x Heatwrap<br>
1 x Air Filter</span></span></p>
<p> </p>
<p><span><span style="font-size: 18px;"><strong>Note</strong></span></span></p>
<p><span><span>* Need modifications - Professionals ONLY <br>
* we will not be responsible for man-made installation damage.</span></span></p>
Warranty: one year warranty for any manufacturing defect
