Turbo Kits Compatible for Acura RSX K20 2002-2006 Turbine A/R: 0.63 T3/T4 Turbocharger
SKU
3002905637
Turbo Kits Compatible for Acura RSX K20 2002-2006 Turbine A/R: 0.63 T3/T4 Turbocharger
Application:
Compatible for Acura RSX K20 2002-2006
Compatible for Honda CIVIC SI K20 2002-2005
Specification:
1 x T3/T4 Turbo Charger:
Compressor Inlet Diameter: 72mm(2.8")
Compressor Outlet Diameter: 53mm（2"）
Oil Inlet: 1/8 NPT
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: 5 bolt Flange
Turbine Trim: 74.2
Turbine Inducer Diameter: 64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Wet Float Bearing
Turbocharger Overall size: 270*220*220
1 x Intercooler: Size 27'' x 7'' x 2.5'' inch. Inlet size is 2.5 inch.
Support up to 350 hp for this small intercooler size - tube and fin style .
Intercooler core size: Full size: 30.5”x 12”x3.0”. Inlet/Outlet: 2.5” * Core size: 24”x 12”x 3.0”
1 x Universal turbo intercooler piping kit:
* 2 x Straight Aluminum Pipe
* 2 x 45°Aluminum Pipe
* 2 x 75°Aluminum Pipe
* 2 x 90°Aluminum Pipe
* 6 x 2.5" Straight Silicon Hose (Blue)
* 2 x 2.5" 90 Degree Hose (Blue)
* 16 x 2.5" Stainless Steel T-Clamp
1 x Type-S Blow Off Valve: CNC Billet Aluminum Type RS Style Blow off Valve and 2.5" Inch Type S/Rs Flange Pipe. 25PSi Boost! Can hold up to 1000+ HP.
1 x 35/38MM Wastegate: 35/38mm External Waste Gate Kit
1 x Turbo Boost Controller: Up To 30 PSi Boost
1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the turbo charger to the oil pan. The kit provides a anodized look, and gives a best cooling performance on your turbo and long lasting life.
Material: Stainless Steel Braided
1x 5 Blot Turbo Downpie Flange: 2.5" t3/t4 5-bolt stainless steel TIG welded downpipe Flange.
1x Fuel Pump:255 LPH Flow Rate
1x Fuel Pressure Regulator:Adjustable 0-140 PSI(0-10kg/cm) for maximum fuel pump capacity
1x TURBOTIMER:Made of high quality
1x Turbo Manifold:38mm/ 35mm External Wastegate Port and Flange Included Standard T3 or T3/ T4 Hybrid Configuration Outlet

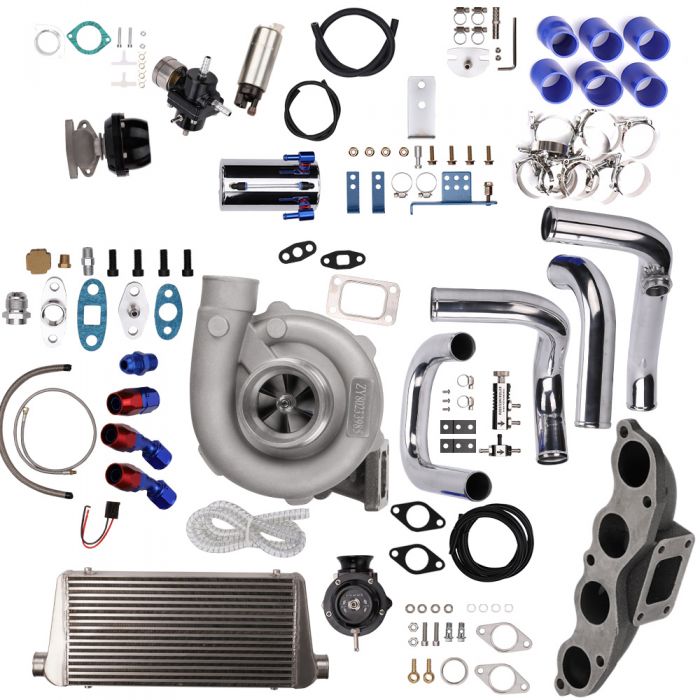

Package included:
1x T3/T4 Turbocharger
1x manifold
1x intercooler
1x intercooler pipe
1x waste gate
1x bov
1x Boost controller
1x oil return / feed line
1x oil pump
1x Fuel Pressure Regulator
1x TURBOTIMER
1x 5 Blot Turbo Downpie Flange
Feature:
1.Turbo charger:
* Capable of Boosting Horse Power up to 400+ HP
* Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700 ℃
* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 ℃
* Cast aluminium blades with good gas tightness and corrosion resistance.
2. Intercooler
* Brand new universal 30.5”x12”x 2.5” Bar and Plate front
mount intercooler.
*Made of high quality T6061aluminum.
*Support up to 650HP and 40PSI.
*Full size: 30.5”x 12”x3.0”. Inlet/Outlet: 2.5” * Core size: 24”x 12”x 3.0”efficiently
* Strong TIG welds will support high PSI levels
3.Boost controller
* Can be setup to adjust boost PSI on the fly
* Can be adjusted for any PSI level desired
* Control your boost with a precise click
* Includes complete install kit
* Anodized aluminum finish
* CNC machined design
4. Intercooler piping kit
* Made of 6061 aluminum
* Lightweight yet strong aluminum piping
* High pressure silicone couplers and T-bolt clamps
5. Turbo Oil returen /Feeding line kit
* Stainless Steel Braided
* Includes complete install kit
* It helps circulate oil from the turbo charger to the oil pan.
* The kit provides a anodized look
* gives a best cooling performance on your turbo and long lasting life.
6.Blow Off Valve Kit
* CNC Billet Aluminum Type RS Style Blow off Valve
* Easy Mount Piping Set Included For Bolt-On.
* Including all necessary hardwares.
* easily adjustable to prevent both permature boost leakage and compressor surge.
* Fast response One For Low And High Boost Pressure.
* Performance design produces a powerful and aggressive sound
* Quality design will not leak under high boost conditions
* Flanges can be installed at user discretion
7. 38MM Wastegate
* Most reliable wastegates For competition vehicles.
* accurate boost control
* high quality appearance features Dual port design
* comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi.
8. 5 Blot Turbo Downpie Flange
* Fits all of our turbo kits that feature a turbocharger with a 5-bolt exhaust housing.
9. Fuel pressure Regulator
* Manage your fuel system requirements, increase fuel delivery by raising pressure
10.TurboTimer
*A turbo timer is a device designed to keep an automotive engine running for a pre-specified period of time in order to automatically execute the cool-down period required to prevent premature turbowear and failure.
11.Fuel Pump
*255 LPH Flow Rate
12 Turbo Manifold
* High Performance Turbo Racing Design with Corrected Wastegate Port Angle for Improved Fitment
*Made of High-Quality Cast-Iron Material for Strength and Durability
*Increase Engine Exhaust Output and Efficiency
Notice:
* Need modifications - Professionals ONLY (This is an aftermarket universal turbo kit for DIY purpose, and it's recommended to advanced players but not for beginners. )
* we will not be responsible for man-made installation damage.
