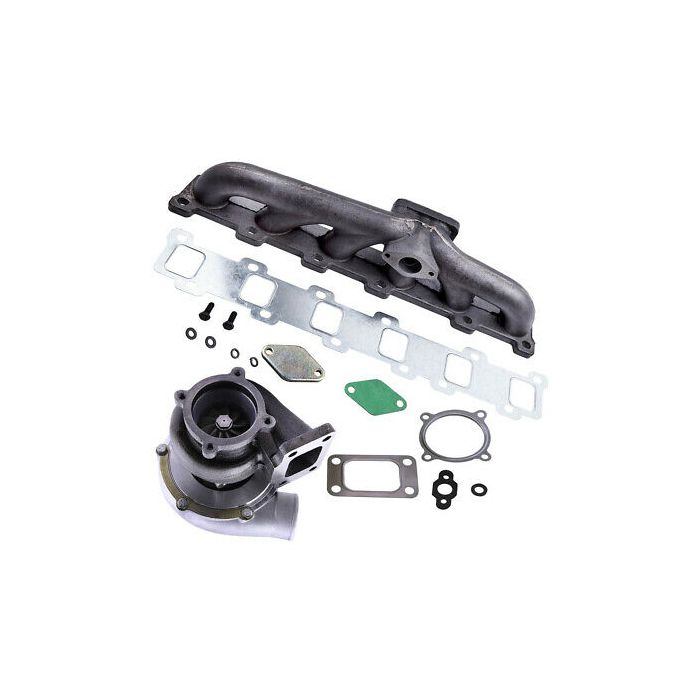

Turbo Turbocharger + Exhaust Manifold Kit compatible for Nissan Patrol 4.2L TD42 GQ Y60 Y61

SKU

3002105375

Skip to the beginning of the images gallery

Application

-Compatible for Nissan Patrol Safari Y60 GR Petrol 4.2L TB42 TB42S TB42E
-Compatible for Nissan Patrol Safari Y60 GR Petrol 4.5L TB45 TB45S TB45E
-Compatible for Nissan Patrol Safari Y60 GR GQ Diesel Turbo Diesel 4.2L TD42
-Compatible for Nissan Patrol Safari Y61 GR Diesel 4.2L TD42 TD422 TD42T3
- For TB42, TD45, TB45 engine, as far as we know, the port configurations are the same. Please give us yourmessagefor the picutre with dimensions and we suggest you to double confirm the fitment with a mechanic before buying.

Specification

Turbo Details
Turbo Flange: T3
Cooled Type: Water & Oil cooled
Bearing: Journal bearing
Exhaust (Downpipe) Flange: 4 Bolt
Horse Power: Capable of Boosting Horse Power up to 600HP
Compressor Wheel: A / R: 0.7 ||Ind:61.5 mm|| Exd:81.5mm|| Trim: 57
Turbiner Wheel: A / R:0.63 ||Ind:68 mm|| Exd:62.4 mm|| Trim: 84

Manifold Detail

-Mount type: top mount / high mount
-External Wastegate: 38mm. You can plate it off if intending to use internally wastegated Turbo (The blocking plate is included as shown in the picture)
-Manufactured from high quality cast iron for durable usage and sound dampening.
-Dimensional accuracy, durability, application specific design and corrosion resistant features.
-Tubes sized and shaped to match cylinder-head exhaust port.
-Special surface treatment to resist corrosion for an increase in power and performance.
-Fully tests under extreme conditions to withstand high temperature and long-life use.
-Quality fully guaranteed and professional installation recommended.

Notice

- Many dealers and customers have bought this kit. According to their feedbacks, they match well. However, modification may be required.
- This turbo kit is an aftermarket turbo kit. Not all the component parts will be direclt bolt on your car. You may need some accessaries and some modification for your vehicle.
- No instruction will be included; professional installation and alignment is suggested.

- Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

- Make sure the oil drain line is lower than the turbo itself.

- Gasoline car must install a water cooling device to avoid overheating.

- Ensure exhaust outlet are well sealed by welding.

- Please feel free to contact us for whatever we can help
