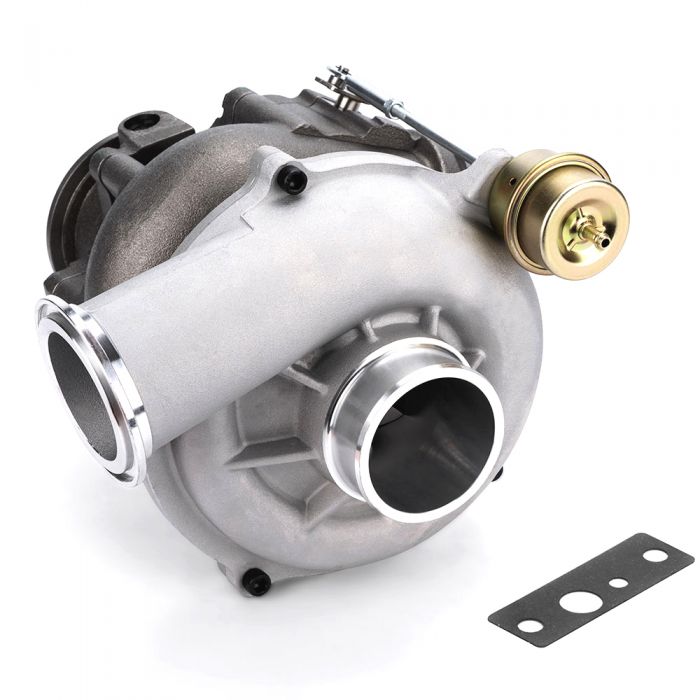

Compatible for Ford 7.3L Turbo F550 F250 F350 F450 Powerstroke Diesel Turbocharger 99.5-03

Introduction

Looking to boost your car's horsepower? Is your car's original turbocharger not performing well or need replacing? Maxpeedingrods stocks all the best OEM-quality turbochargers and turbo parts to give your car the power, performance, and reliability you deserve. Maxpeedingrods aftermarket replacement turbos provide the perfect solution by delivering a high-quality turbo at a budget-friendly price.

Application

Compatible for Ford Excursion 7.3L Powerstroke Diesel Engine 2000-2003
Compatible for Ford F Series Trucks 7.3L Powerstroke Diesel Engine - Produced after 12/98 - Powerstroke Badges on Doors 1999
Compatible for Ford F Series Trucks 7.3L Powerstroke Diesel Engine 2000-2003
Compatible for Ford Pick-up Truck 7.3L Powerstroke Diesel Engine 2000-2003
Compatible for Ford Pick-up Truck 7.3L Powerstroke Diesel Engine - Produced after 12/98 - Powerstroke Badges on Doors 1999

Turbo Does Not Fit early 1999 7.3L Engines，
Note:
1999 Model Identification
Early 1999 Models: V8 Powerstroke Fender Badge and 4 Bolts Securing the Compressor Housing.
Late 1999 Models: Powerstroke Badges on Doors and 5 Bolts Securing the Compressor Housing.
Our turbo only fits for Late models.

Interchange Part Numbe

GTP38,1831383C92,702012-9006,
739619-0009,7064475003,706447-5003,706447-9003,
7396195004S,739619-5004S,F81Z6K682BARM,F81Z6K682CARM,
F81Z6K682CARM,1831383C92,7020129006,7064479003,1831383C94，
1831450C94,40-30078 AN,5010014R92,5776 990 0000，1831450C91,1831452C91，1831383C93
* Not fit for 1825878C91，702650-0001，471128-9010
* HOW TO IDENTIFY YOUR TURBOCHARGER
If you are not sure fitment for your old turbo, please let us know this information :
1 . The OEM code information from your original turbo nameplate
2 . The Engine code & KW , HP , Year for your car
3 . The Photos of your complete turbo
4 . Please note that the registration number cannot identify your turbocharger

Specification

Cooling Type：Oil cooling
Compressor Wheel Diameter: 80/59.3 mm
Compressor Trim: 54.9
Turbine Wheel Diameter: 76.9/ 67.7mm
Turbine Trim: 77.5
Horsepower Rating: up to 275 HP
Bearing Type: Floating Bearing
Condition: Brand New
Warranty: one year warranty for any manufacturing defect
Accessories: You will receive the parts exactly as shown in the picture above.

Feature

1. Turbine housing ：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius
2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius
3. Compressor wheel/blades：Cast aluminium with good gas tightness and corrosion resistance
4. Brass 270 Thrust Bearing：Brass dissipates heat faster and provides a longer life span vs steel
5. Oil Seal：Tighter tolerances for superior sealing minimizing oil leakage from the bearing housing
6. Excellent Design:
Excellent Design And Processing and durable floating bearing structure + high-precision blade dynamic balance
7. High Efficiency:
High efficiency and low inertia intake and exhaust blades can greatly reduce turbo lag
8. Durable:
Water-cooled/oil-cooled structure extends turbine service life
9. VSR's balancing technology
This Turbocharger you will receive has been balanced using the VSR machine technology

Note

*Please check the Turbo Model, Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the correct one for your engine. If you need assistance finding the correct turbo for your car, please feel free to contact us.
*Professional installation is highly recommended (No Instructions are Included)
