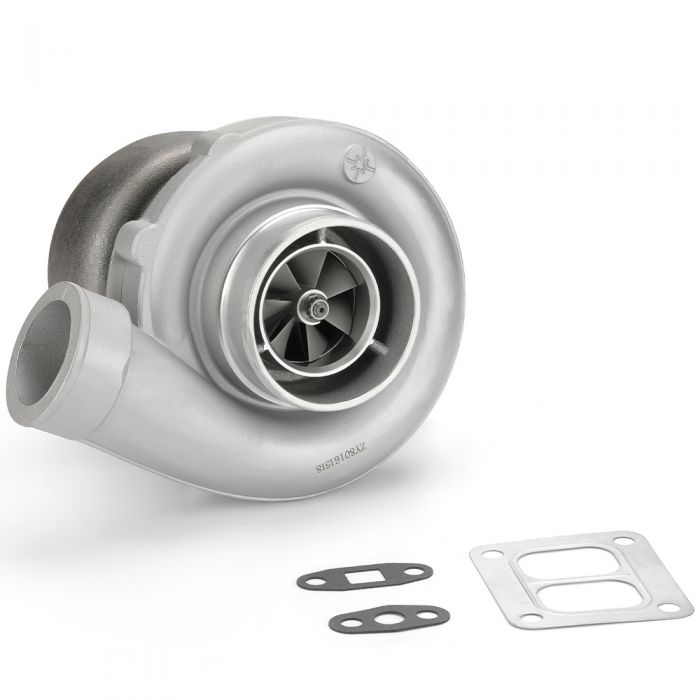

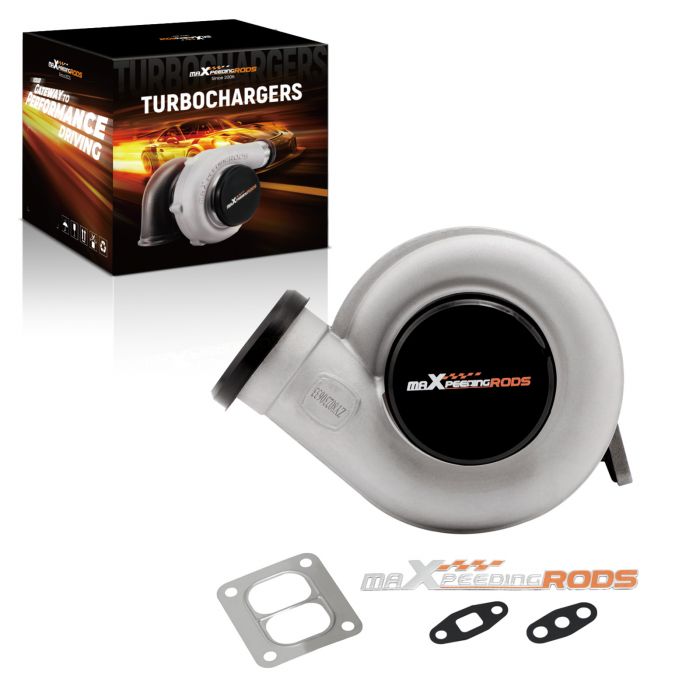

Turbo Turbocharger S300SX3 66 73 T4 Twin Scroll .91 A/R 800 HP Journal Bearing

Introduction

Are you trying to put together a cost effective turbocharger system for your vehicle? You should know a turbocharged car has about 20-25% more total power than a non-turbo car of the same year, make and model. Well, Maxpeedingrods universal turbocharger got just what you're looking for. Don't hesitate to get a turbo to boost your car's power.

Application:

Horse Power: Up to 320-800hp

Specification

Exhaust Inlet (Turbo Manifold) Flange: T4
Exhaust Outlet (Downpipe) Flange: V-Band
Turbine Trim: 85
Turbine A/R: 0.91
Turbine Inducer Diameter: 80mm/3.14in
Turbine Exducer Diameter: 73mm/2.9in
Compressor Trim: 47
Compressor Air Inlet Size: 77.5mm
Compressor Air outlet Size: 51.2mm
Compressor Inducer Diameter: 66mm/2.6in
Compressor Exducer Diameter: 96mm/3.8in
Bearing Type: Floating bearing
Trust bearings: 270 Degrees
Cooling Type: Oil cooling
Warranty: one year for any manufacture defects

Features

* Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700 degrees Celsius.
* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius.
* Cast aluminium blades with good gas tightness and corrosion resistance.
* Capable of Boosting Horse Power up to 400BHP.

Notice:

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
* Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended (No Instruction Included).
