Turbo charger Compatible for Nissan Navara 2.5L YD25DDTI2006-

SKU

3002907496

Skip to the beginning of the images gallery

Application

Compatible for Nissan Navara 2.5L YD25DDTI 2006-
\ Compatible for Nissan Pathfinder 2.5L YD25DDTI 2006-
\
\ *Notice:
\ 1.Please Carefully distinguish this Turbo with 14411-EB300.
\ This turbo have 4 bolt exhaust inlet flange which connect with the manifold, but the inlet flange of 14411-eb300 only have 3 bolts.
\ 2.DO NOT for 14411-5X01A which equipped with elctric actuator.

OE/Part number

769708,
\ 769708-1,769708-0001, 769708-5001S,
\ 769708-2,769708-0002, 769708-5002S,
\ 769708-3,769708-0003, 769708-5003S,
\ 769708-4,769708-0004, 769708-5004S,
\ 767720,
\ 767720-1,767720-0001, 767720-5001S,
\ 767720-2,767720-0002, 767720-5002S,
\ 767720-3,767720-0003, 767720-5003S,
\ 767720-4,767720-0004, 767720-5004S,
\ 767720-5,767720-0005, 767720-5005S,
\ 767720-6,767720-0006, 767720-5006S,
\
\ 14411EB70A, 14411-EB70A, 14411EB70B, 14411-EB70B,
\ 14411EB70C, 14411-EB70C, 14411EB70D, 14411-EB70D,
\ 14411EC00A, 14411-EC00A, 14411EC00B, 14411-EC00B,
\ 14411EC00C, 14411-EC00C, 14411EC00E, 14411-EC00E,

Specification

Turbo Model: GT2056V, GTA2056LV
\ Eingine code: YD25DDTI
\ Cooling Type: Water & Oil Cooled
\ Bearing Type: Journal Bearing / Floating Bearing
\ Thrust bearings: 270 Degrees
\ Hosepower: Up to 171HP
\ Actuator Type:Vacuum actuator
\ Turbo Type:Individual/VNT
\ Universal Fitment: No
\ Finish: Matte
\ Condition: 100% Brand New
\ Accessories: You will receive the parts exactly as shown in the picture above
\ Package Size:25*24*23cm
\ Package Weight: :7940g

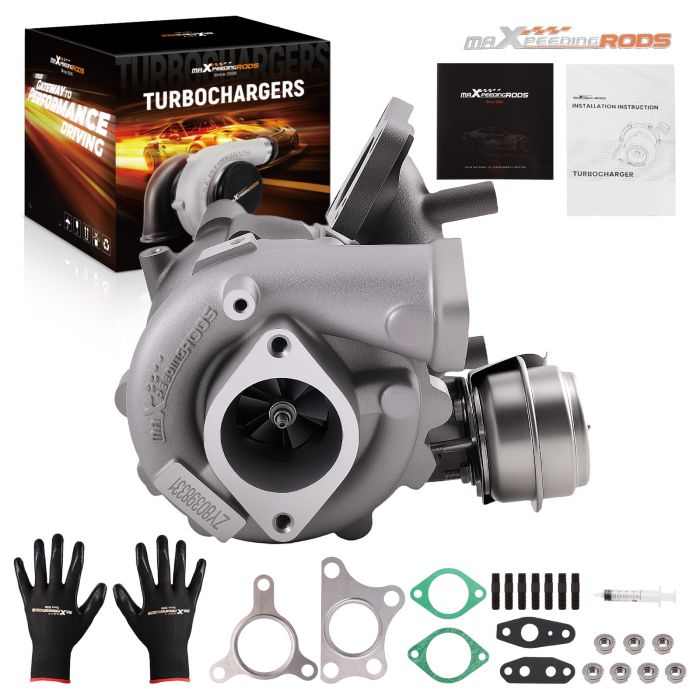

Package included

1xTurbocharger
\ 2xFlange gaskets
\ 2xOil/Water port gaskets
\ 7xBolts
\ 8xNuts
\ 1xManual
\ 1xBrochure
\ 1xSticker

Feature

* Product Material
\ 1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
\ 2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
\ 3. Compressor housing：ZL104 aluminum with lightweight
\ 4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
\
\ * Product Performance
\ 1. OEM-quality and size with little modification
\ 2. Rich experience in turbo production and own factory
\ 3. High-Speed oil seal ring and Precision clearance
\
\ * Technology Advantage:
\ 1. 100% balancing Test by TURBOTECHNICS VSR3
\ 2. G3-min-Flow VNT Turbo testing
\ 3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
\ * Professional installation is highly recommended
\ * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
