Turbocharger kit GT45 Universal Turbo Kit Perfect For 4.0L-6.0L engine

SKU
3002906287

Register and log in to view the price.

Turbocharger kit GT45 Universal Turbo Kit Perfect For 4.0L-6.0L engine

Application

Universal Turbo Kit Perfect For 4.0L-6.0L engine

This Kit Will be able to add 450+HP at 7.5-14.5 PSI.

(You will need Turbo Manifold, Modification and other accessories to complete the Turbo Kit Project)


Specification

1 x GT45 Turbo Charger:

Exhaust Inlet (Turbo Manifold) Flange: T4 Flange

Exhaust Outlet (pipe) Flange: 3.5 " V-Band Flange

Compressor Trim: 49.6

Compressor Inducer Diameter: 69 mm

Compressor Exducer Diameter: 98 mm

Compressor Air Inlet Size: 107mm

Compressor Air outlet Size: 86.3mm

Compressor A/R: 0.66

Turbine Trim: 77.6

Turbine Inducer Diameter: 88 mm

Turbine Exducer Diameter: 77.5 mm

Turbine A/R: 1.05

Bearing Type: Wet Float

Cooling Type: Oil Cooled

Wastegate: External

Horsepower:  Up to 600+HP

Condition: Brand New

Package Size:30x 30x 27 cm

Package Weight: 16400g

1 x Intercooler:

Oversize: 31"X 12"X 3"

3" Inlet and Outlet

0.2-0.5 at 15 PSI; 2-5 at 35 PSI.

Intercooler core size:  21*7*2.5

1 x  intercooler piping kit: 3-inch Intercooler piping, Couplers, Clamps

1 x  Blow Off Valve: 50mm Blow off valve

1 x  Wastegate: 44mm Wastegate w/14lb spring

1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the turbocharger to the oil pan. The kit provides an anodized look and gives the best cooling performance on your turbo and long-lasting life.

Material: Stainless Steel Braided

1x Fuel Pump:450 lph Fuel pump

1x Fuel injector:80lb

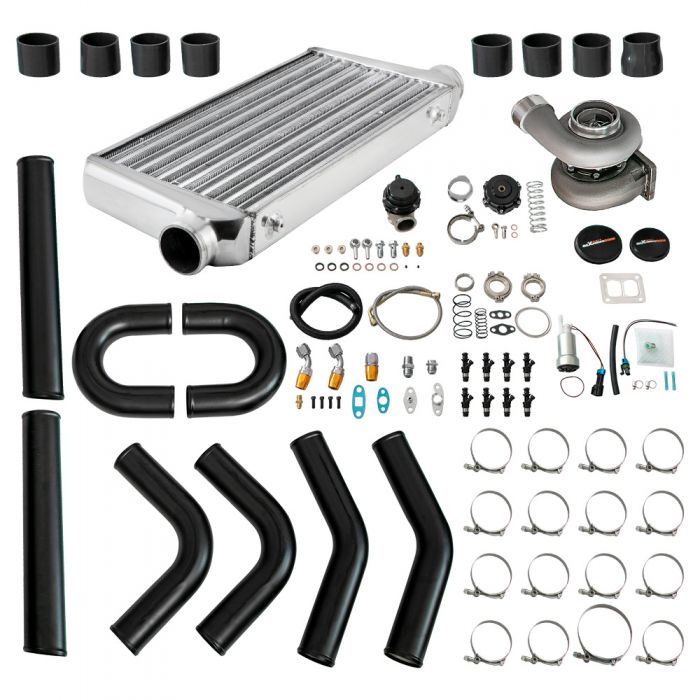

Package included

1 x GT45 Turbo Charger

1 x Intercooler

1 x intercooler piping kit

1 x Blow Off Valve

1 x  Wastegate:

1 x Turbo Oil Return / Feeding Line Kit

1x Fuel Pump

1x Fuel Injector


Feature

1. Turbocharger

* Turbine Housing: Ductile iron QT450-10 - temperature resistant up to 700℃

* Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃

* Compressor housing: ZL104 aluminum with lightweight

* Compressor wheel/blades: Cast aluminium blades – superior airtightness & corrosion resistance

* Cost-effective turbo increase 20-40% power for your car

* Rich experience in turbo production and own factory

* Quality assurance

* High-speed oil seal ring

* Strict quality inspection

* Improve emissions & save oil

* Built for durability and strength

 2. Intercooler

 * core size: 31"X 12"X 3" cools down the turbocharged air efficiently

 * Lightweight aluminium racing intercooler,

 * Strong TIG welds will support high PSI levels

3. Intercooler piping kit

 * Made of 6061 aluminium

 * Lightweight yet strong aluminium piping

 * High-pressure silicone couplers  and T-bolt clamps

4. Turbo Oil return /Feeding line kit

 * Stainless Steel Braided

 * Includes complete install kit

 *  It helps circulate oil from the turbocharger to the oil pan.

 * The kit provides an anodized look

 * gives the best cooling performance on your turbo and long-lasting life.

5. Blow Off Valve Kit

 * CNC Billet Aluminum Type RS Style Blow off Valve

 * Easy Mount Piping Set Included For Bolt-On.


Note

* Need modifications - Professionals ONLY (This is an aftermarket universal turbo kit for DIY purposes, and it's recommended to advanced players but not for beginners. )

* we will not be responsible for man-made installation damage.

 * Including all necessary hardware.

 * easily adjustable to prevent both premature boost leakage and compressor surge.

 * Fast response One For Low And High Boost Pressure.

 * Performance design produces a powerful and aggressive sound

 * Quality design will not leak under high boost conditions

 * Flanges can be installed at user discretion

6. Wastegate

 * Most reliable wastegates For competition vehicles.

 * accurate boost control

 * high-quality appearance features Dual port design

 * comes with waste gate spring (fully adjustable, up to 15 psi), allowing you to add the spring to get desired high psi.

7. Fuel Pump:450 lph Fuel pump

8. Fuel injector:80lb
