Universal GT2871 Turbocharger Water Cold +3 inch Intercooler pipe Clamps

SKU

3002037238

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

Perfect for all 1.5L-2.0L engine，for all 4 cylinder
Horse Power: Boost Horse Power up to 350BHP

Specification

Turbo

Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange
Exhaust Outlet (Downpipe) Flange: 5-Bolt
Turbine Trim: 76
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil
Internal Wastegate: Yes
Warranty: one year for any manufacture defects
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Thread Size: M8*1.25
Water Thread Size: M14*1.5
Horse Power: Boost Horse Power up to 350BHP

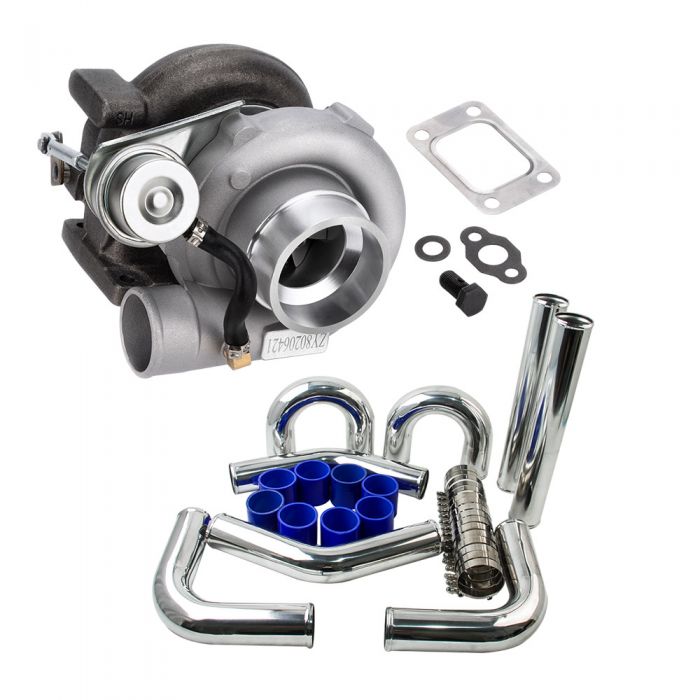

Accessories: You will get exactly as shown as picture above

Piping Pipe Kit

Pipe length: 19.68''(500mm)

100% brand new Never been tried or installed.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished

Condition: Brand New

Notice

* Please check the specifications carefully before ordering. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.

* Professional installation is highly recommended (No Instruction Included).

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
