GT35 GT3582 Turbo compatible for Ford Falcon BA/BF XR6 FPV F6 2.5 64mm Intercooler Pipe
SKU
3002037244
GT35 GT3582 Turbo compatible for Ford Falcon BA/BF XR6 FPV F6 2.5 64mm Intercooler Pipe
Application
Perfect for all 4/6 cylinder and 3.0L-6.0L engines
NOTE:
This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.
2.5" 64mm Aluminum Universal Intercooler Turbo Piping Pipe Kit fits all Turbo Projects.
Specification
Turbo
Horse Power: Capable of Boosting Horse Power up to 600HP
Cooling Type: Water + Oil
Exhaust Inlet (Turbo Manifold) Flange: T3 Flange
Exhaust Outlet (Downpipe) Flange: 4 Bolt
Turbine Trim: 84
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Turbine A/R: 0.63
Compressor Trim: 57
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compressor A/R: 0.7
Bearing: Wet Float
Warranty: one year
Internal Wastegate: No
Piping Pipe Kit
Pipe Thickness: 1.8mm
Pipe length: 18''
100% brand new Never been tried or installed.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished
Condition
Brand New

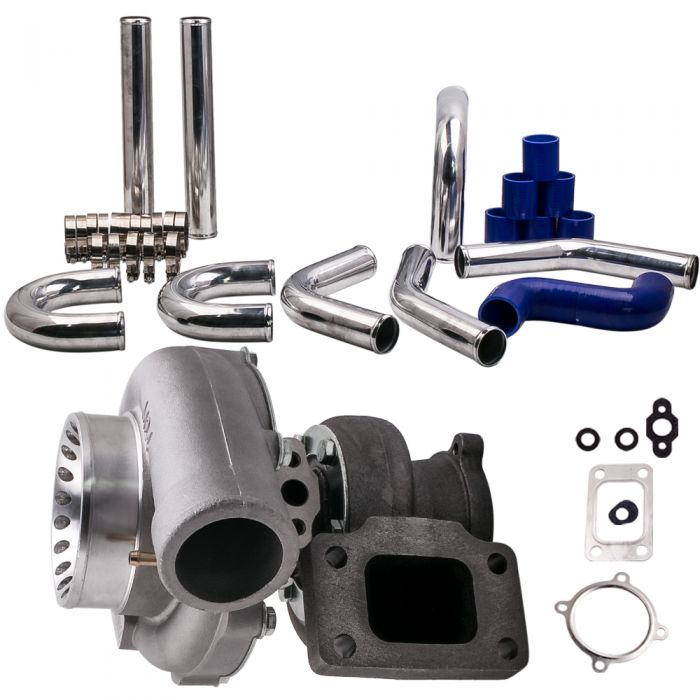

Package Including
2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"
1x Turbo and gaskets
Notice
* Please check the specifications carefully before placing orders. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended (No Instruction Included).
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
