Universal GT3582 Intercooler Turbo Piping Pipe KitT3 AR.70/63 Anti-Surge
Introduction
A turbocharger (also called turbo), is a turbine-driven forced induction device that increases an internal combustion engine’s efficiency and power output by forcing extra air into the combustion chamber. The key difference between a turbocharger and a conventional supercharger is precisely that a turbocharger is powered by a turbine driven by the engine's exhaust gas. A turbo consists of a compressor, a cartridge, a turbine and an exhaust valve. Maxpeedingrods provides universal turbochargers to enhance overall engine performance of your beloved car.
Application
Perfect for all 4/6 cylinder and 3.0L-6.0L engines
Horse Power: Capable of Boosting Horse Power up to 600HP
Cooling Type: Water + Oil
Specification
Turbo
Exhaust Inlet (Turbo Manifold) Flange: T3 Flange
Exhaust Outlet (Downpipe) Flange: 4 Bolt
Turbine Trim: 84
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Turbine A/R: 0.63
Compressor Trim: 57
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compressor A/R: 0.7
Bearing: Floating Bearing
Warranty: one year
Internal Wastegate: No
Intercooler Turbo Piping Pipe Kit
Pipe Thickness: 1.8mm
Pipe length: 18''
-100% brand new Never been tried or installed.
-100% quality assurance tested
-Made out of high quality of 6061 aluminum Manual polishing finished
Intercooler
Core Dimension: 600 X 300 X 76 MM
Inlet / outlet size: 3" inch
Thickness: 3" (76mm)
Pipe length: 18''
Pipe Thickness: 1.8mm
Core design: Tube & Fin
Color: Silver
Intercoolers are designed with a tube and fin core which has the highest thermomic dissipative process.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished

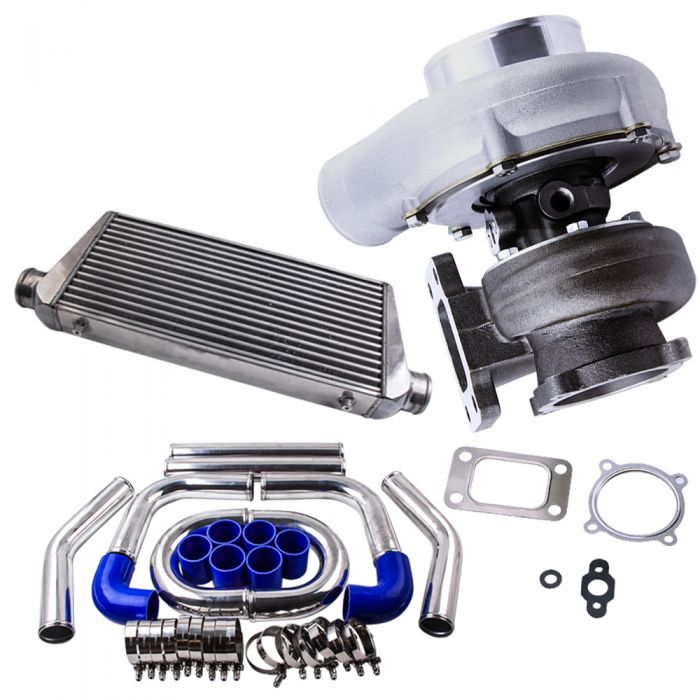

Package Including
2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"
1x Turbo and gaskets
600x300x76mm Intercooler
Notice
* Please check the specifications carefully before placing orders. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended (No Instruction Included).
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
