Universal T3/T4 T04E Turbo Charger Kit + 27x7x2.5 Intercooler + 2.5quot; Turbo Pipe

T04E Turbocharger with Internal Wastegate

Exhaust (Turbo Manifold) Flange: Standard T3/ T4 4-Bolt
Exhaust (Downpipe) Flange: Standard 2.50" Inner Diameter V-Band
Intake Inlet/ Outlet:  3.00"/ 2.00"

Compressor:
Trim: 44
Inducer Diameter:50.5 mm
Exducer Diameter:76 mm
A/R:0.5

Turbine
Trim:73
Inducer Diameter:65.5 mm
Exducer Diameter:55.9 mm
A/R:0.63

2.5" Universal Aluminum Intercooler Pipe

-Made out of high quality of 6061 aluminum Manual polishing finished
-Manufactured from high quality aluminum for durable use:
-Straight Layout and Appropriate Pipes' Radius lead to less pressure loss
-High Pressure Resistant Hoses bring out high performance of intercooler
-All pipes are well externally polished
-All intercoolers are bar & plate design for better cooling efficiency
-Professional Installation Is Highly Recommended
-Pipe Thickness: 1.8mm
-Pipe length: 18"

27x7x2.5 2.5" Universal Intercooler

-Inlet/outlet size: 2.5"
-Core size: 21"x 7"x 2.5"
-Full size:  27.00" (L) X 7.00" (H) X 2.50"(W)
-Compress Air Flow Rate<350Cubic Feet/Min, Rated up to500 Max HP
-Pressure drop:  2~5psiat35psi, 0.2~0.5psiat15psi
-Material:  Aluminum alloy
-Core design: Tube & Fin

Package include

1x T04E V-Band Turbocharger
1x 27x7x2.5 2.5" Universal Intercooler
2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"

Specification

Condition: 100% Brand New
Bearing Type: Floating Bearing
Warranty: one year

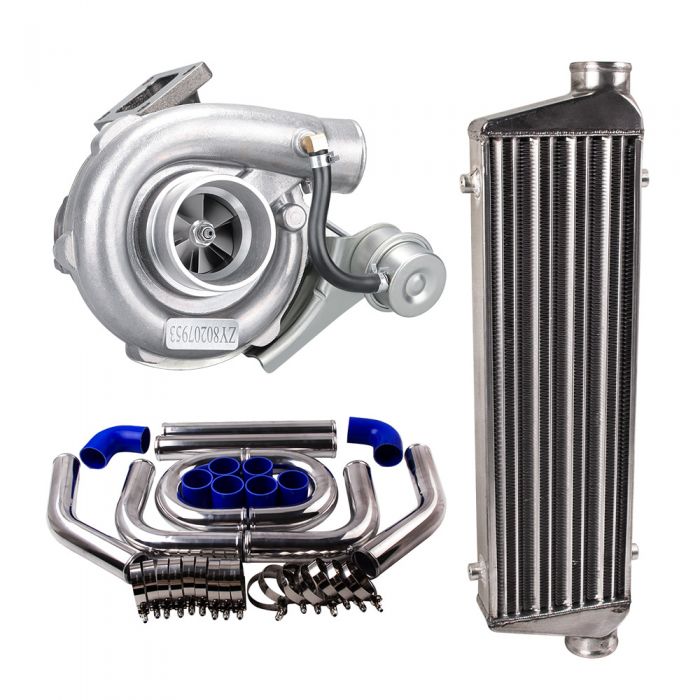

Accessories: You will get exactly as shown in the picture above

Notice

* Professional installation is highly recommended (No Instruction Included).
* For any needs please contact us.

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
