Universal Turbo Kit Perfect For 2.5-6.0L engine GT35 GT3582 Turbo Charger
SKU
3002204679
Universal Turbo Kit Perfect For 2.5-6.0L engine GT35 GT3582 Turbo Charger
Introduction:
Are you trying to put together a cost effective turbocharger system for your vehicle? You should know a turbocharged car has about 20-40% more total power than a non-turbo car of the same year, make and model. Well, Maxpeedingrods universal turbocharger got just what you're looking for.
Don't hesitate to get a turbo to boost your car's power.
Application:
Universal Turbo Kit Perfect For 2.5-6.0L engine
This Kit Will be able to add 350+HP at 7.5-14.5 PSI.
(You will need Turbo Manifold, Modification and other accessories to complete the Turbo Kit Project)
Specification:
1x GT35 Turbo charger
Exhaust Inlet (Turbo Manifold) Flange: T3
FlangeExhaust Outlet (Downpipe) Flange: 4-Bolt
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Bearing Type: Wet Float
Cooling Type: Water + Oil
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)
Wastegate：External Wastegate
Oil feed/inlet: M10*7/16-24
Oil drian/outlet: 2*M8*1.25
water inlet/outlet: M14* 1.5
Maximum PSI：22
Turbocharger Overall size: 230*180*240
1x intercooler
Overall Size 27'' x 7'' x 2.5'' inch.
core size: 21*7*2.5
Inlet size is 2.5 inch.
1 x Universal turbo intercooler piping kit:
* 2 x Straight Aluminum Pipe
* 2 x 45°Aluminum Pipe
* 2 x 75°Aluminum Pipe
* 2 x 90°Aluminum Pipe
* 6 x 2.5" Straight Silicon Hose (Blue)
* 2 x 2.5" 90 Degree Hose (Blue)
* 16 x 2.5" Stainless Steel T-Clamp
1 x Type-S Blow Off Valve: CNC Billet Aluminum Type RS Style Blow off Valve and 2.5" Inch Type S/Rs Flange Pipe. 25PSi Boost! Can hold up to 1000+ HP.
1 X BOV pipe: can install anywhere suitable
1 x 35/38MM Wastegate: 35/38mm External Waste Gate Kit
1 x Turbo Boost Controller: Up To 30 PSi Boost
1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the turbo charger to the oil pan. The kit provides a anodized look, and gives a best cooling performance on your turbo and long lasting life.
Material: Stainless Steel Braided
1x 5'' 4 in 1 Tachometer:
Water Temp Unit Type: Celsius
Water Temp Display Range: 40~120 Celsius
Oil Temp Unit type: Celsius
Oil Temp Display Range: 50~150 Celsius
Oil Pressure Unit Type: Bar
Oil Pressure Display Range: 0~7 Bar
Thread Size of Sensors: 1/8NPT
1x heat shield branket
Titanium and Carbon Fiber high temperature wrap: 2500°F max

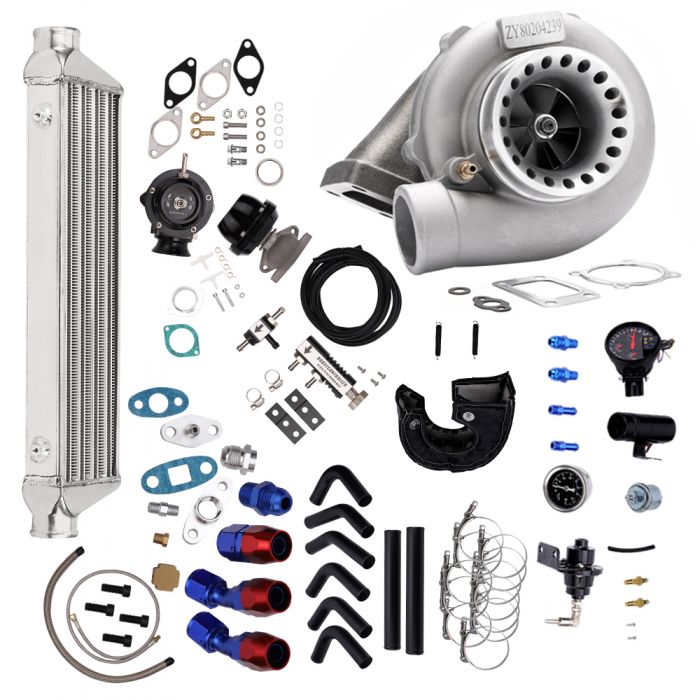

1x Tachometer
1x GT35 Turbocharger
1x Oil Feed / Return Line
1x 35/38mm Wastegate
1x Turbo Boost Gauge
1x Turbo Intercooler
1x Tubo Boost Controller
1x Type-S Blow Off Valve(Random Color)
1x Turbo Piping Kit
1x 5" 4in1 Tachometer
1x Tachometer
1x heat shield branket
Notice:
* Need modifications - Professionals ONLY (This is an aftermarket universal turbo kit for DIY purpose, and it's recommended to advanced players but not for beginners. )
* we will not be responsible for man-made installation damage.
