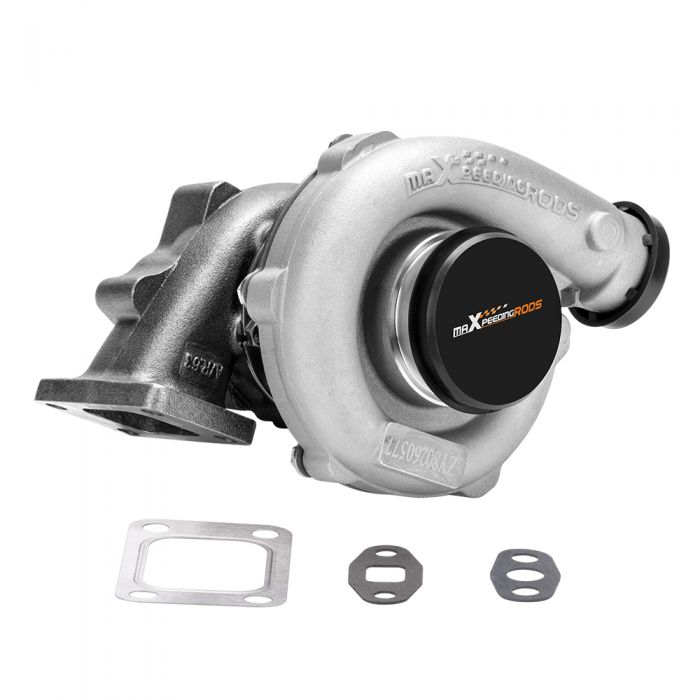

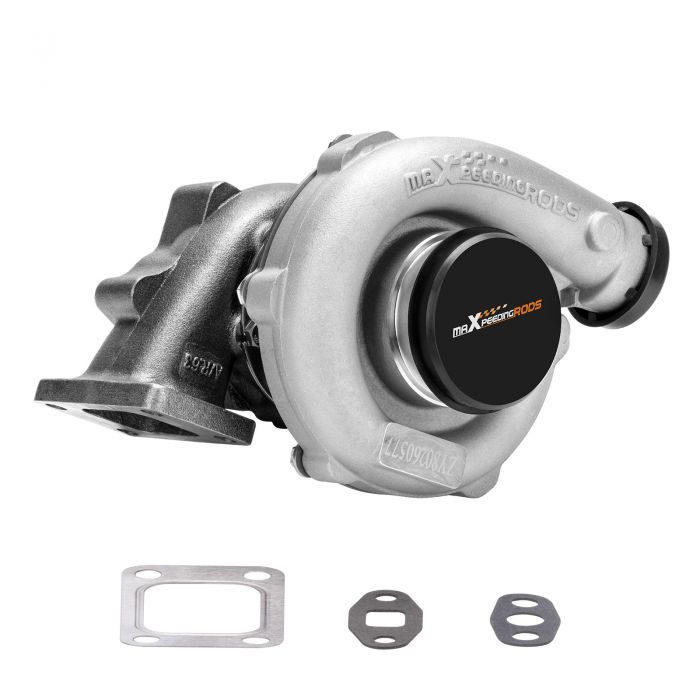

Universal turbo billet compressor wheel turbocharger T3T4 T04E T3 .63 AR Turbine for 1.5L-2.5L eng 400HP

Application

Universal Application.
For 1.5L to 2.5L any 4/6 cylinder engine
Maximum 18PSI

Note:Please confirm that your car's displacement is between 1.5-2.5L .

Please check the size before purchasing and make sure that your car has enough space to install this turbo.

Specification

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern

Cooling Type: Oil Cooled

Wastegate: External Wastegate

Compressor Trim: 48.1

Compressor A/R: 0.5

Compressor Inducer: 52.7mm

Compressor Exducer: 76mm

Turbine Trim: 74.2

Turbine A/R: 0.63

Turbine Inducer: 64.8mm

Turbine Exducer: 55.8mm

Turbine exhaust inlet：44.5mm/81mm

Compressor outlet：45mm(inside diameter)、53mm(outer diameter)

Compressor inlet：68 mm(inside diameter)、72mm(outer diameter)

Horsepower:  Up to 400+HP

Condition: Brand New

Package Size:26x 24x 23 cm

Package Weight: 7250g

Feature

*Product Material

1. Turbine housing: Silicon-Molybdenum - temperature resistant up to 850℃

2. Steel Turbine Wheel: K419 alloy - high oxidation stability and resistance  up  to 1000℃

3. Compressor housing: ZL104 aluminium with lightweight

4. Compressor wheel/blades: Aluminum blades-precision machining forging and lightweight design

*Product  Performance

1. Cost-effective turbo increase 20-40% power for your car

2. Excellent high-temperature resistance，high efficiency and durability

3. Rich experience in turbo production and own factory

4. Quality assurance

5. High-speed oil seal ring

6. Strict quality inspection

7. Improve emissions & save oil

*All necessary gaskets included for ease of installation

Note

* Professional installation is highly recommended (No Instruction Included).

* This Turbo is not vehicle specific. It is compatible with a wide range of applications. Therefore please check the specifications and verify compatibility prior to placing your order.
