V-Band Flange Turbo Gt45 Turbocharger+oil Feed Line+oil Drain Return Line

Application

Perfect for all 3.0L-6.0L engine

Specification

Exhaust (Turbo Manifold) Flange : T4 4 Bolt Flange
Exhaust (Downpipe) Flange: V-Band Flange
Wastegate: External Wastegate
Horse Power: Boost Horse Power up to 600+ BHP
Turbo Height: 243cm
Turbo Width: 273cm
Compressor:
Trim: 50
Inducer Diamter: 69 mm
Exducer Diamter: 98mm
A/R: 0.66

Turbine:
Trim: 78
Inducer Diamter: 88 mm
Exducer Diamter: 77.5 mm
A/R: 1.05

36" Stainless Steel Braided Oil Feed Line

Length: 36.00"
Inner Diameter: 0.25"
10AN Fittings Anodized Ends
CNC Machined Turbo Adapter Plate
Stainless Steel Hose, Braided for Heat & Pressure

Condition: 100% Brand New
Bearing Type: Floating Bearing

Warranty: one year warranty for any manufacturing defect

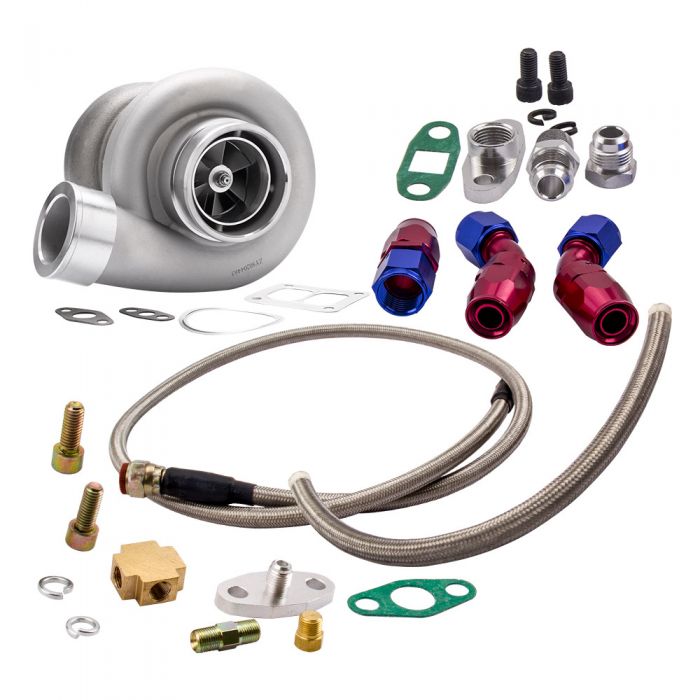

Accessories: You will get exactly as shown in the picture above

Turbo Oil Drain Return Line

 Fit for T3 T4 T3/T4 T70 T60 T61 T66 TO4E Turbo Oil Return Line Kit

 Oil return line length: 550mm

 Oil return line inner diameter: ¢21

 Hose end fitting: 10 AN

 Item condition: 100% Brand New

 Material: High Strength Steel with Aluminum Material

 Quantity: Comes with gasket, fitting, screws, etc. Exactly the same as shown in the picture

Notice

 This is a universal kit. Not all the component parts will be directly bolt on your car. You may still need some accessaries of your OEM oil line kit.

 Please feel free to contact us for whatever we can help.

 Please check our store for more auto parts.

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
