T3/t4 T04E V-band Turbocharger Turbo.63 A/r Universal Wastegate Blow Off Valve
Application
Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Maximum PSI 18（1.2Bar）
Specification
Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: V-Band Flange
Cooling Type: Oil Cooled
Wastegate: Internal Wastegate
Horse Power: Boost Horse Power up to 420HP
Compressor:
Trim: 44
Inducer Diameter:50.5 mm
Exducer Diameter:76 mm
A/R:0.5
Turbine:
Trim:73
Inducer Diameter:65.5 mm
Exducer Diameter:55.9 mm
A/R:0.63
Package Includes:
1xT3/T4 T04E V-band Turbocharger
1x Type-RS Blow Off Valve Kit
1x Type-RS 2.5" Aluminum Flange Pipe Adapter

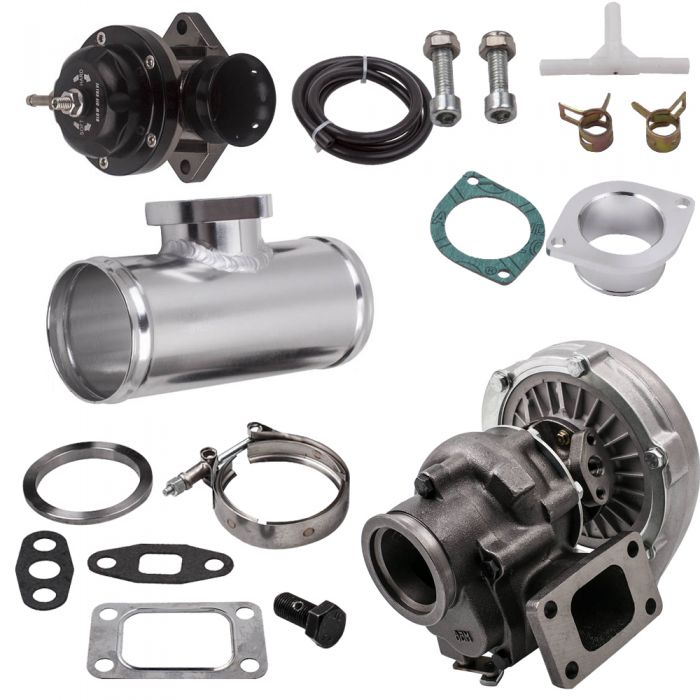

(You will get exactly as shown in the picture above)
Condition: 100% Brand New
Bearing Type: Floating Bearing
Warranty: one year
Accessories: You will get exactly as shown in the picture above
About Blow Off Valve
Blow Off Valve:
- Holds Up to 30PSI Boost Pressure
- Easy Assembly,Aluminum Flange, CNC Machined Billet Aluminum Body
- Dual Spring System Promoted Response & Allows for High Boost Pressures
- Hard-Anodized Valve for Increased Air Flow
- Powder-Coated Anodized and Polished Finish
- 2 Bolts Mounting Design
Flange Pipe Adapter:
2.50" (63mm) Pipe Size
Fits Type-S or Type-RS Dump Pipe Flange
Oval / 2 Bolt Flange Design type
Condition: 100% Brand New
Warranty: one year warranty for any manufacturing defect
Notice
* Professional installation is highly recommended (No Instruction Included).
* For any needs please contact us.
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
