Wastegate Turbo kits T3,T3 T4 Perfect For 3.0L-5.0L engine

Application

Universal Turbo Kit Perfect For 3.0L-5.0L engine

This Kit Will be able to add 350+HP at 7.5-14.5 PSI.

(You will need Turbo Manifold, Modification and other accessories to complete the Turbo Kit Project)

Specification

2 x T3 turbocharger

Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust Outlet (Downpipe) Flange: V-Band Flange

Bearing: Journal Bearing

Cooling Type: Oil Cooled

Wastegate: Internal Wastegate

Thrust Bearings: 270 Degrees

Compressor Trim: 48.1

Compressor A/R: 0.5

Compressor Inducer: 52.7mm

Compressor Exducer: 76mm

Turbine Trim: 74.2

Turbine A/R: 0.63

Turbine Inducer: 64.8mm

Turbine Exducer: 55.8mm

Compressor outlet：78 mm

Compressor inlet：51.5 mm

Turbine exhaust outlet: 79mm

Turbine exhaust inlet：44.7mm（length）/85.8mm（width）

Hosepower:  Up to 420 HP

Condition: Brand New

Package Size:29x 27x 24 cm

Package Weight: 9160g

1 x Intercooler:

Full Size: 30" X 11" X 3"

Core Size: 22" X 11" X 3"

Support up to 350 hp for this small intercooler size - tube and fin style.

1 x Universal turbo intercooler piping kit:

1 x Type-S Blow Off Valve: CNC Billet Aluminum Type RS Style Blow off Valve and 2.5" Inch Type S/Rs Flange Pipe.  25PSi Boost! Can hold up to 1000+ HP.

2 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the turbocharger to the oil pan. The kit provides an anodized look and gives the best cooling performance on your turbo and long-lasting life.

Material: Stainless Steel Braided

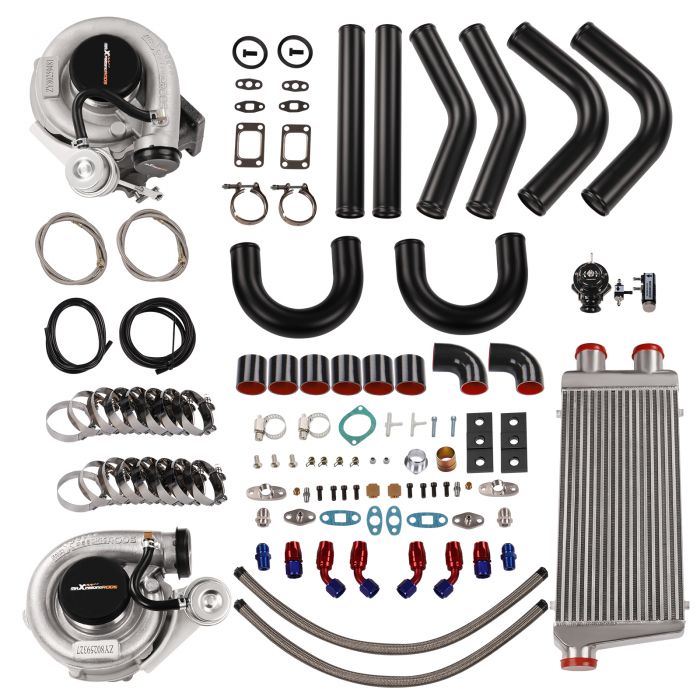

Package included

2x T3Turbocharger

2x Oil Feed / Return Line

1x Turbo Intercooler

1x Type-S Blow Off Valve

1x Intercooler

Feature

1. Turbocharger

* Turbine Housing: Ductile iron QT450-10 - temperature resistant up to 700℃

* Steel turbine wheel:  K418 alloy -  high  oxidation stability and resistance  up  to 900℃

* Compressor housing: ZL104 aluminium with lightweight

* Compressor wheel/blades: Cast aluminium blades – superior airtightness & corrosion resistance

* Cost-effective turbo increase 20-40% power for your car

* Rich experience in turbo production and own factory

* Quality assurance

* High-speed oil seal ring

* Strict quality inspection

* Improve emissions & save oil

* Built for durability and strength

2. Intercooler

 * Lightweight aluminium racing intercooler，

 * Strong TIG welds will support high PSI levels

3. Intercooler piping kit

 * Made of 6061 aluminium

 * Lightweight yet strong aluminium piping

 * High-pressure silicone couplers  and T-bolt clamps

4. Turbo Oil return /Feeding line kit

 * Stainless Steel Braided

 * Includes complete install kit

 *  It helps circulate oil from the turbocharger to the oil pan.

 * The kit provides an anodized look

 * gives the best cooling performance on your turbo and long-lasting life.

5. Blow Off Valve Kit

 * CNC Billet Aluminum Type RS Style Blow off Valve

 * Easy Mount Piping Set Included For Bolt-On.

 * Including all necessary hardware.

 * easily adjustable to prevent both premature boost leakage and compressor surge.

 * Fast response One For Low And High Boost Pressure.

 * Performance design produces a powerful and aggressive sound

 * Quality design will not leak under high boost conditions

 * Flanges can be installed at user discretion

Note

* Need modifications - Professionals ONLY (This is an aftermarket universal turbo kit for DIY purposes, and it's recommended to advanced players but not for beginners. )

* we will not be responsible for man-made installation damage.
