Weld-On Triangulated 4 Link Kit Brackets 2500 Bags Air Ride Suspension 2.75 axle

SKU

3002033706

Skip to the beginning of the images gallery

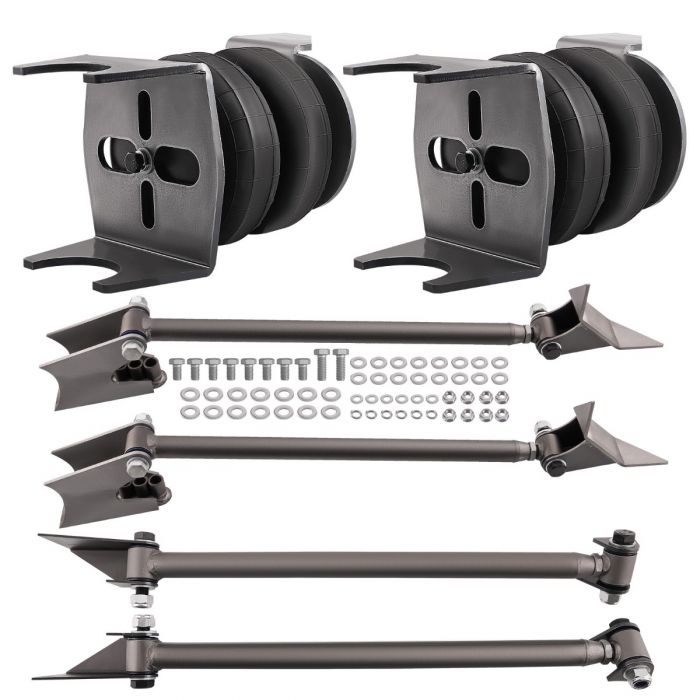

Package Includes

4 x Heavy Duty Steel Bars \
4 x Zinc Plated Steel Rod Ends W/ Urethane Bushings\
2 x Steel, Weld-On Triangulated Frame Mounts \
2 x Steel, Weld-On Lower Axle Tube Mounts \
4 x Steel, Weld-On Center Link Axle Mounts\
2 x Steel, Weld-On Side Frame Mounts \
8 x Button Head Bolts with Nyloc Nuts\
2 x Weld-On Lower Axle Bag Mount\
2 x Weld-On Upper Frame Bag Mount\
2x Standard 2500 Single 1/2"npt Port Air Bags

4 Link Bar Dimensions

DOM Tubing Outside Diameter :1.25" \
DOM Tubing Thick Wall :156" \
All Four Bars :24.00" \
(Center To Center Adjusted All The Way In)

Specs of bag

2500 LBS\
Diameter: 6"\
Extended:8"\
Closed:2.75"\
Two Top Mounting Holes : Approx 1-3/4" from Eye to Eye\
Bottom has One Mounting Hole in Center\
All mounting holes are 3/8"-16 UNC

Feature

Instructions Are Not Included\
We Recommend Professional Installation

Notice

Universal Rear Weld-On Triangulated 4 Link Suspension Kit with Two 2500 Air Bags & Rear Air Bag Mounts
The rod is available in silver and black, please refer to the actual product received
Please feel free to contact us for whatever we can help with!
